Tractor Portable Hydraulic Trailer Truck Mounted Mini Diesel Stationary Hydraulic Piston Concrete Line Pump

Product Description

Hot Sales

Product Description
Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
After the concrete is pumped, the conveying pipeline should be cleaned immediately, the pump machine should be cleaned, inspection and maintenance and other finishing work should be carried out. (1) Cleaning of conveying pipelines Air washing steps of conveying pipelines a. The pipeline should be equipped with a stop valve, and the stop plate should be inserted to prevent the concrete in the vertical or upward inclined pipe from flowing backward. b. Take out some of the concrete at the mouth of the first straight pipe and connect it to the air wash joint. The joint should be filled with a sponge ball soaked in water in advance, and the inlet and exhaust valves and compressed air hoses should be installed on the joint. c. Install a safety cover at the end of the pipe to prevent concrete injection from hurting people. d. Slowly open the compressed air intake valve, so that the compressed air presses out the sponge ball and concrete. If the pipeline is equipped with a stop valve, it should be in the open position first, and then open the air valve. e. When the concrete in the pipeline has been completely emptied, and the sponge ball has been shot out, the air washing is completed. At this time, the compressed air intake valve should be closed, and then various pipe fittings should be removed.
zmwm21
Product Parameters
Parameters of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

Maximum Theoretical Concrete Delivery Volume	75-80**m³/h
Maximum Pumping Concrete Pressure	18MPa
Distribution Valve Form	S-pipe valve
Concrete Conveying Cylinder Bore*Stroke	Φ230*1800mm
Outlet Diameter	Φ200mm
Rated Power	6108
Rated Speed	1480r/min
Hydraulic Circuit Form	open circuit
Pumping Xiyong Oil Pressure	40MPa
Stirring System Oil Pressure	15MPa
Hydraulic Tank Volume	560L
Maximum Conveying Vertical Distance	250m
Maximum Conveying Horizontal Distance	800m
Maximum Particles Allowed	60mm
Dimensions L*W/*H	6200*1800*2000mm
Total Mass	5800KG

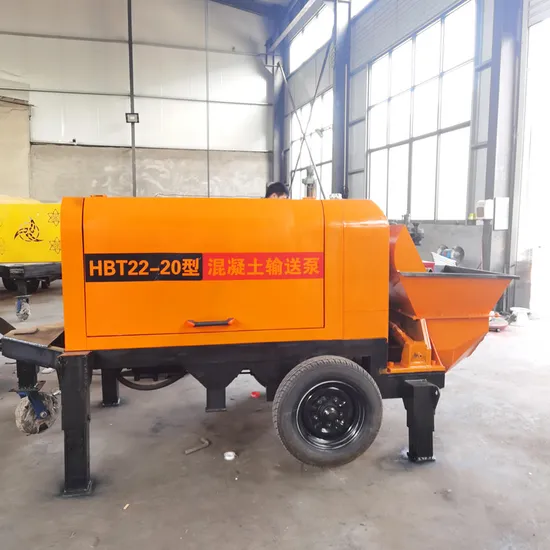

Detailed Photos
Photos of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
