2025 Nonwoven Fabric Slitter Rewinder Machine

Product Description

2025 Nonwoven Fabric Slitter Rewinder Machine
Model: 1800mm
Product Introduction
Nonwoven Fabric, Melt-blown Fabric Slitter Rewinder Machine with touch screen is developed model for high speed production of bundle stretch wrap,banding wrap roll from the jumbo roll to small roll.
Machine is with the special features for rapid changing of rewinding shaft,it can save the shaft changing time to improve the production speed.
The Slitting Rewinder Machine machine operation is very simple via input the data in the touch screen only.
The control system is by PLC hub and touch screen for user friendly with world top brand premium quality to ensure heavy duty production endurable.
Machine is ideal to slit the PVC wire protection wrap film too,and PE food stretch wrap,PVC cling film etc.
Adapted materials:
Bubble film, PVC plastic film, PET film, PE heat shrinkable film, reflective film, EVA foam, leather, pearl cotton, bubble pad, Non-woven fabric, Melt-blown Fabric,insulating paper, adhesive paper, bronzing paper, copper foil aluminum foil, etc.
Technical parameters:

Model	1800
Max.slitting width	1800mm
Max. unwinding diameter	1000mm
Max. rewinding diameter/roll	1000mm
Unwinding deviation correction	≤0.5mm
Min.slitting width	20mm
Slitting accuracy	±0.1mm
Slitting speed	5-80m/min
Slitting thickness	15-400g/m2
Slitting material	PVC/PE/Leather/Nonwoven Fabric/Meltblown Cloth/ plastic film etc
Rewind motor power	3.0KW
Main motor power	2.2KW
Winding and unwinding air expansion shaft	Standard diameter 74mm(can be customized)

Features:
1. Simple operation and complete functions
2. The edge is sharp and wear-resistant
3. Rewinding width and length can be adjusted arbitrarily
4. Feeding rack with air expansion shaft, effectively prevent the inertia of coiling material
5. With photoelectric induction correction function, prevent material deviation
6. Magnetic particle clutch controller is used for unwinding and rewinding

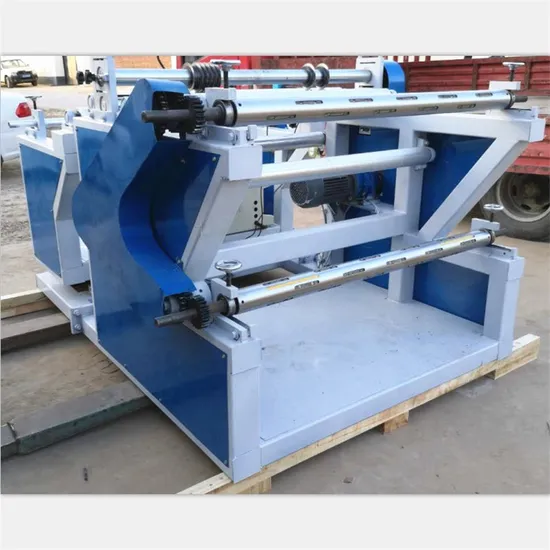

Product display
High quality tool material, reasonable upper and lower tool structure, high cutting precision
Machine test before delivery, perfect cutting and rewinding
Package & Delivery:
Our products will be packed with transparent film and soft foam, then be packed with strong and standard export wooden case.
Shipping method:
1. We can ship the goods to you by Air, Sea and International Express such as DHL,UPS,TNT,EMS and so on.
2. You can also choose the appropriate one based on your timeline and budget.
3. You can choose to use your own shipping agent.
We offer below business term:

Accepted delivery terms	FOB, CFR, CIF, EXW
Accepted payment currency	USD, EUR,CNY
Accepted payment type	T/T, L/C
Nearest port	Qingdao, Shanghai, Dalian, Tianjin,Ningbo etc.

A. Technical service
1. We calculate the capacity and recommend the best models.
2. We supply the spare parts and technical support in & after the warranty time.
3. We supply the training course to your workers at our factory if you need.
B. After-sales service
1. Technical support for your installation, operation and maintenance.
2. One year's warranty
3. Spare parts and technical support at most economic prices after the warranty.
We are looking forward to your inquiry.
Hope we can establish long term business relationship with you and your company.

---
