50Hz 60Hz C Ummings Engine Silent Natural Gas CHP Cogenerator 100kw 125kVA

Product Description

50hz 60hz C UMMINGS Engine Silent Natural Gas CHP Cogenerator 100kw 125kva
Multiple units been installed in Europe and have run over than 10,000hours.

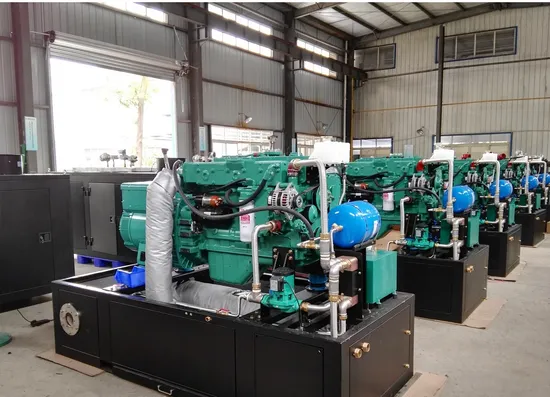

GENERAL INTRODUCTION ON SEVENPOWER COGENERATOR SET
-Powered by converted C UMMINGS engine
-Air-cooled type alternator
-Engine heat exchanger
-Exhaust heat exchanger made from full stainless steel,longer service life
-Integrated control cabinet
-Safe gas train
-Gas engine control system
-Auto lambda control,easy start
-All necessary engine protections, oil pressure, coolant temperature, over current, over voltage, overload, engine speed, frequency protection, battery voltage
-Easy control system, all information easily read from the controller screen, power output,voltage,current,power factor, engine speed,oil pressure,coolant temperature,battery voltage,run hours,start numbers,alarms,historical records

Main Specifications

Model Name	SP100N
Frequency (Hz)	50
Voltage	400/230
Fuel Type	Natural gas
Continuous Power(KWe)	100kw
Thermal Output	168kw
Electrical efficiency	31.5%
Thermal efficiency	52.9%
Overall efficiency	84.4%
Engine	Converted C UMMINGS
Alternator	Kwise, other brands is available on request
Controller	ComAp
Canopy	With or without
Genset Gas Inlet Pressure	3-5kpa
Gas consumption@100% load	0.322m3/kW.h

For more information about the natural gas cogenerator 100kw, please consult with your sales representative.Thanks.
