Paper Tube Core Making Machine

Product Description

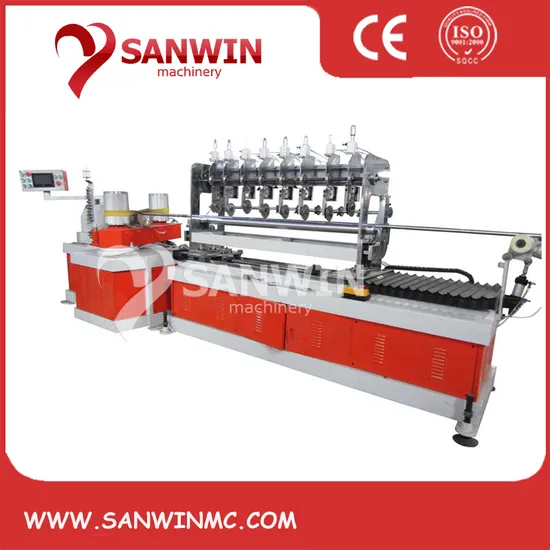

SWJG-20 Two-heads Multi Cutters Paper Tube Core Making Machine
Descriptions:
SWJG-30 Multi-cutters three Heads paper tube & core making machine equipped with Numerical and Multi-blades Cutting System & Three-heads Winding System. Suitable for paper tubes with thickness 1-10mm.

-- 1.PLC controlling system with automatic operation.
-- 2.Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision.
-- 3.Adopt with Multi-cutters and online cutting length reaches to 100-2000mm. Paper tubes can be finished in one-step.
Technical Parameter:

Technical Parameter
Paper Layer	3-16 Layers
Inner Diameter	25-200mm
Wall Thickness	1-10mm
Winding Speed	5-20 meters/min
Winding Nose	Three noses two belts
Cutting System	Servo Synchronous Tracking Cut
Gluing Way	Double Sides
Length fixing	Encoder
Operator	2-3 persons
Speed Control	By Inverter
Power Supply	380V/3Phase/50Hz
Measurement & Weight
Measurement	4100*1650*1800mm
Working Space	11000*7000mm
Weight	3500kgs
Control System
Main motor	3.5kw x 3pcs Wannan
PLC	Xinjie
Man-machine Interface	Xinjie
Inverter	11KW Wosen
Servo Motor / Driver	Dongyuan
Lead Screw / Slider	Shangyin
Pneumatic Components	Jingwei
Electric Components	CHNT
Bearing	Haerbin
Configuration
Paper Reel Stand	16 Layers Integral Type
Gluing System	16 Layers Spraying Type
Inner Paper Shelf	1 Set
Belt	2 Pieces
Mandrel Shaft	1 Piece
Useful Tool	1 Set

Sample:
Machine Photo:
- Three Heads Spiral Winding
- Multi-knives Online Cutting System
Packaging & Shipping
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
Contact us:
Contact: Ms Nancy
Mobile : 0086-15868035456
Website:sanwinmachine.en.made-in-china.com
Add:Rui'an City ,Zhejiang Province,China
