Cm 600 Liters Automatic Container Mixer

Product Description

Introduction:
The DEGOLD CM series container mixer is widely applied in various powder and particle materials industries. With geometric shaped "Z" blade, any desired mixing result can be dependably obtained. The average mixing time is 3-6 min. Operator can add additional materials into mixer by outlet valve.

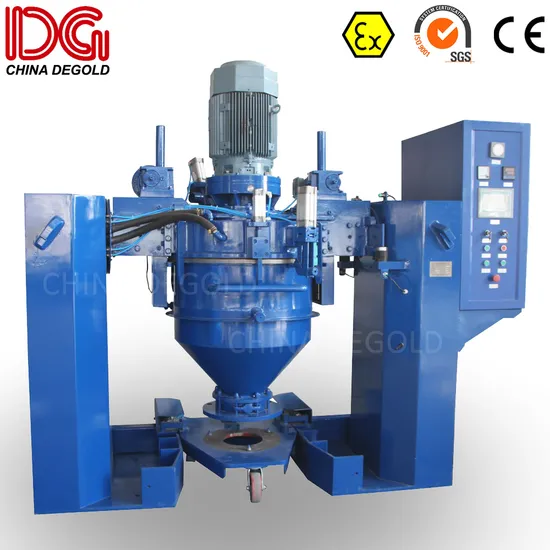

The container mixer consists of a mobile container and the actual mixer. Here, the container performs several functions from charging to emptying, because it serves as a transport container before and after mixing, as a mixing container during mixing, and as a storage container for subsequent further processing.
Mark Introduction:
1) "CM"-Degold container mixer
2) "-D"-two mix blades, "no mark"-one mixing blade
3) "600"-total container volume

Note: CM600, means degold container mixer with 600L container and two mix blades.
Applications
Powder coating
Master batch (PE, PP, PA, PVC, PS, ABS, TPE, EPS...)
Dye concentrates
Additives (e.g. TiO2, CaCo3, Zn, MgO...)
Toner (premixtures and finished mixtures)
PVC (hard/soft) preparation (without cooling)
Metal compounds (MIM)
PTFE
Silicic acid with liquids
Brake linings
Leather fibers
Construction materials
Food
Cosmetics
Pencil and colored pencil leads
Advantages
Separated control cabinet
The special cleaning position
Geometric two mix blades
Many usage of container
PLC control
Ex motor
The CM series of container mixers provide the best alternative to conventional high speed mixers when production conditions require a high versatility and a wide range of different products to be mixed with the same mixer.
Thanks to the container mixer special design divided into two separate units, mixing head and protable container, the cleaning time between batches is minimized therefore the risk of contamination too when switching from one type of production to another.
Mix, storage and transportation are optimized by directly using the same containers that can be easily inserted in a dosing system either to a weighting scale or an extruder feeder.
Technical Data:

	CM50	CM150 CM150-D	CM300 CM300-D	CM600 CM600-D	CM1000 CM1000-D
Total volume:	50L	150L	300L	600L	1000L
Effective volume:	40L	120L	240L	480L	800L
Mixing motor power:	4kW	11kW	11kW	22kW	30kW
Blades rotary speeds	211r/min	965r/min	126/730r/min	90/740r/min	90/740r/min
Rotary motor power:	0.37kW	0.37kW	0.75kW	1.5kW	2.2kW
Lifting motor power:	--	--	2×0.55kW	2×0.55kW	2×0.55kW
Compressed air:	0.6Mpa, 1/4" interface port
Working voltage	380V 50Hz (it can be customized)
Controlling voltage:	24V
Container outlet butterfly vavle diameter:	100	150	200	250	250
Dimension Length L L1 Width W W1 W2 W3 Height H H1 H2 H3	--mm --mm --mm --mm --mm --mm --mm --mm --mm --mm	2000mm 1500mm 950mm 640mm 925mm 800mm 1800mm 2100mm 1175mm 1300mm	2200mm 1900mm 1010mm 915mm 1015mm 900mm 2250mm 2355mm 1350mm 1550mm	2700mm 2400mm 1100mm 1070mm 1200mm 900mm 2550mm 2675mm 1500mm 1700mm	3290mm 2890mm 1550mm 1266mm 1573mm 1325mm 3056mm 3477mm 1900mm 2130mm

Germany MIXACO mxier
