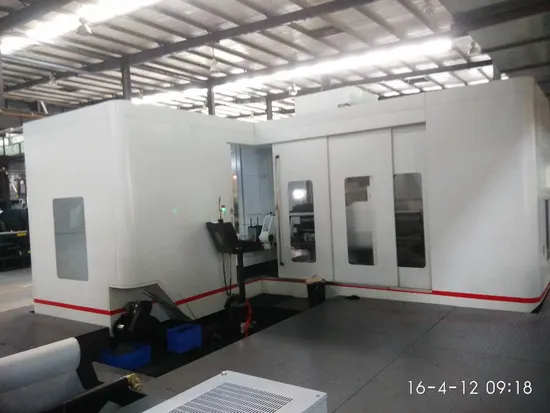

6 Axis CNC Deep Hole Boring Machine with CE Certificate

Product Description

ZJR series CNC deep-hole drilling machine is automatic and multifunctional, majoring in deep-hole drilling and cutting, while milling function is also professional. With the modern industry advanced technology, the performance, accuracy, processing range, operating mode and working efficiency are in the international advanced level.
1.FANUC 0i -MD CNC system: stable performance, convenient operation programming, perfect and punctual after-sales service.
2.FANUC servo motor for six coordinate axis and main axis: good characteristic and perfect low speed performance.
3.With high-precision ball screw bar and rolling linear guide, the operating components make positioning accurately.
4.Remote control device is adopted in cooling system. Depends on the hole size, materials, chips and required precision, adjusting the flow rate and pressure can optimize the cooling result.
5.ZJR series CNC deep-hole drilling machine is mainly used for extremely difficult processes of deep-hole in mold industry. It's spoken highly of its high-efficiency, low-cost, humanized technological process.
Technical Specifications of
ZJR Series Six-Axis CNC Deep-hole Drilling Machine Tool

Items		ZJR10-1210
Processing Capacity	Diameter of the hole for gun drill	φ3~φ30 mm
	Maximum depth of the hole for gun drill	1000 mm
Processing Travel	(X) Processing travel(from left to right)of the working table	1200 mm
	(Y) Processing travel of sliding table	1000 mm
	(Z) Processing travel of column	500 mm
	(A) The rotary angle of ram	15 , 25 The spindle turns upward 15 degrees, and down to 25 degrees
	(B) Rotation angle	360 (, 15 ) 360 degrees(servo control, indexing accuracy 15 seconds)
Spindle	Taper hole of spindle	BT40
	Maximum speed of spindle	4500 rpm
Power	Spindle motor	7.5 KW/11 KW
	X X axis servo motor	30 N.m
	Y Y axis servo motor	30 N.m
	Z Z axis servo motor	30 N.m
	W W axis servo motor	12 N.m
	A A axis servo motor	30 N.m
	B B axis servo motor	30 N.m
	Total power	40 KW
CNC Index	Maximum loading capacity	5 ton

Due to the continuous improvement of products, specifications and pictures are for reference only. For details, please visit our website: http://zonjet.en.made-in-china.com

---
