Fabric Rubber Belts Jointing Vulcanizer with CE&ISO9001

Product Description

CE&ISO9001 Approved Fabric Rubber Belts Jointing Vulcanizer with Water Cooling System
All our machines can be customized according to your requirements.
>> Company Information
1. 40 years on rubber machinery manufacturing and exporting.2. Delivery within 30 days.3. Safety wood or plywood crates packaging.4. Full transportation insurance.5. Sell to 126 countries on 6 continents.

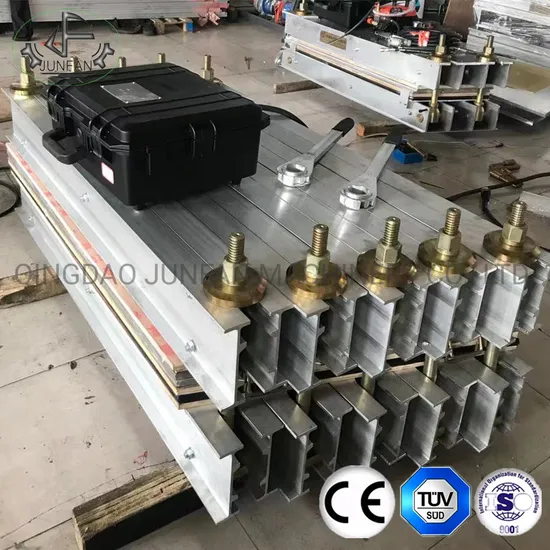

>> Features 1. The rubber vulcanizing machine has light weight; About one person can move it. It consists of the following components: Rack / Pressure Bracket, fastening device, sizing block, screw, nut, gasket, high-pressure hose, hydraulic test pump, thermal baffle, on the heating plate, secondary cable, electric cabinet, cables, down the heating plate, Suppress water bag.
2. The material of main machine components made of aluminum alloy, light weight, easy installation and removal, easy to handle.
3. Suppress water bag(its function is increase pressure) technology has reached international advanced level, it has following characters:
(1)Light weight, it is the 1/4 weight of the ordinary.
(2)Large expansion amplitude.
(3)Uniform pressure and the pressure can reach 3.0MPa.
(4)No water leakage and long life.
4. The electric cabinet can automatic rise temperature, automatic control temperature and calculate time.
>>MAIN TECHNICAL SPECIFICATION

Model Size	Applied Width(mm)	motor power(kw)	Dimension(mm)	Weight(kg)
ZLJ-800x830	800	11.2	1280x830x630	650
ZLJ-1000x830	1000	14.1	1480x830x630	700
ZLJ-1200x830	1200	16.5	1680x830x710	900
ZLJ-1400x830	1400	18.6	1930x830x760	1100
ZLJ-1600x830	1600	21.1	2140x830x800	1320
ZLJ-1800x830	1800	23.3	2300x830x850	1480
ZLJ-2000x830	2000	25.6	2600x830x950	1860

>> LAB MACHINESWe had a lot of cooperation with East China University of Technology State Key Laboratory of Chemical Engineering, Qingdao university,Beijing chemical industry research institute ect. and supply the lab rubber machines. >>MACHINE LISTOur company specially manufacturring rubber mixing mill, rubber vulcanizing press( frame type, four column type and lab press), rubber kneader and tire recycling line.
>> AFTER SERVICES FOR THE PRESS1. The above machines are all passed inspection of 3~5 hours of full load operation before leaving the factory, you can use it directly thus saving the time of test-run and expense.
2. Warranty: 12 months after installation, if our machines have any problems, you can feel free contact me, we will solve it as soon as possible, and give you the best services.
Delivery Demonstration
Some Exhibition Pictures
COMPANY CERTIFICATE
>>FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5.How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6.How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport.
We will pick up you at the airport.

---
