Turbo-Crusher

Product Description

Turbo-crusher
Working Princible
The crushing chamber of this machine consists of components such as the casing, door, main shaft, turbine assembly, screen assembly, feeding hopper, and discharge pipe. It mainly uses the vortex generated by the back of the turbine blades to complete the crushing of materials. During operation, the motor drives the spindle and turbine to rotate at high speed. Due to the small gap between the turbine and the teeth on the screen ring, the material entering the machine is ground again in the gaps of the rotating airflow. During this process, the turbine sucks in a large amount of air, which cools the machine, abrasives, and transports fine powder. What sets it apart is the addition of a certain number of moving and stationary needles on the turbine and door, achieving the purpose of pre crushing the material entering the crushing area. At the same time, a flat gear ring that matches the outer side of the blade end face has been added to the machine door to prevent coarse particles that have not been fully crushed from running out of the crushing chamber. The fineness of material crushing depends on the properties of the material, the aperture of the sieve, and the passage rate of the material and air.
Performance & Characteristics
1. This machine has the characteristics of compact and reasonable structure, smooth operation, easy installation and maintenance (no foundation required), small footprint, high production capacity, and no dust pollution.
2. The crushing ratio is large, usually with raw materials input within 10mm, and the crushing fineness can be adjusted within the range of 20-325 mesh.
3. The equipment generates a large amount of air during operation and has good self cooling function, so it can also be applied to certain heat sensitive materials.
4. This machine belongs to the high-speed turbine crusher, with high efficiency and large crushing capacity per unit power, resulting in low operating costs. The entire system configuration is reasonable, and the one-time investment cost is low.

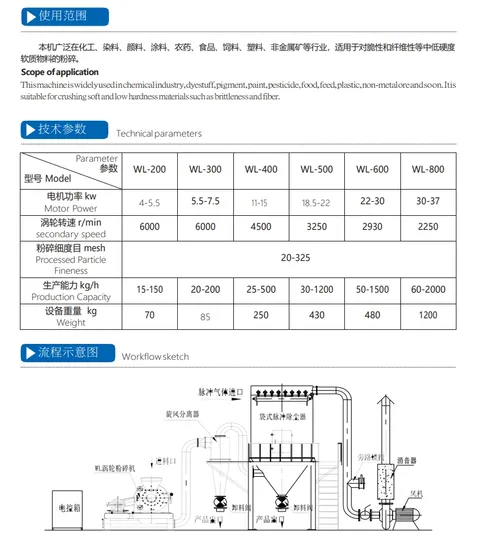

Scope of Application
This machine is widely used in industries such as chemical, dye, pigment, coating, pesticide, food, feed, plastic, non-metallic minerals, etc. It is suitable for crushing brittle and fibrous soft materials with low to medium hardness.

Product Parameters

Parameter Model	WL-200	WL-300	WL-400	WL-500	WL-600	WL-800
Motor Power kw	4-5.5	5.5-7.5	11-15	18.5-22	22-30	30-37
secondary speed r/min	6000	6000	4500	3250	2930	2250
Processed Particle Fineness mesh	20-325
Production Capacity kg/h	15-150	20-200	25-500	30-1200	50-1500	60-2000
Weight kg	70	85	250	430	480	1200

Flow Chart
