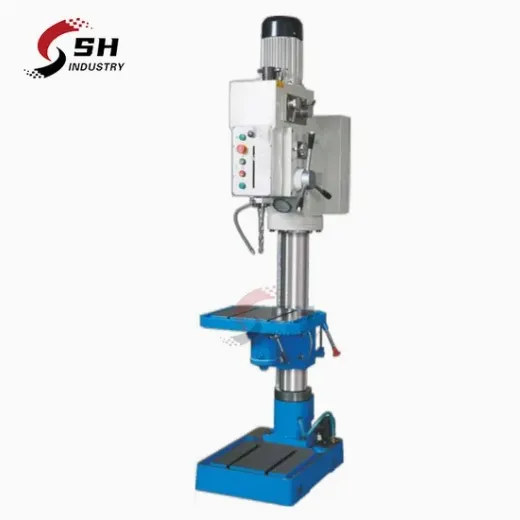

Vertical Pillar Type Drilling Machine with Tapping Function Z5030 Z5035 Column Type Drilling Machine Price

Product Description

Vertical Pillar Type Drilling Machine with Tapping Function Z5030 Z5035 Column Type Drilling Machine Price
Product Description
Characteristics:
1 .Novel design and beautiful appearance, the structure of the chips, a wide range of variable speed.
2 .Unique working table, electric (Z5035)and manual lifting mechanism, easy to operate.
3. the table can rotate 180 degrees or 45 degrees, and it can be used for a wide range of application.
4.The is provided with a cooling device and tapping device.
5 .Electrical system to implement the IEC electrical standards, with a short circuit and overload protection function, the main motor power large.
6 .Unique protective devices, safe and reliable.
Application:
Suitable for drilling, reaming, reaming, tapping screws, spot facing machining, and batch production is a single ideal machine.
Main technical Specifications:

Specifications	Units	Z5030	Z5035
Max. Drilling capacity	mm	30	35
Max. Tapping capacity	mm	M20	M24
Diameter of column	mm	120	140
Spindle travel	mm	135	160
Distance spindle axis to column generating line	mm	320	330
Max. spindle nose to table	mm	550	590
Max. spindle nose to base	mm	1100	1180
Spindle taper		MT3	MT4
Spindle speeds range	r/min	65-2600	75-2500
Spindle speeds series		12	12
Spindle feeds	mm/r	0.1 0.2 0.3	0.1 0.2 0.3
Dimension of worktable surface	mm	500x440	500x440
Table travel	mm	490	550
Dimension of base table	mm	400x390	400x390
Overall height	mm	2050	2300
Spindle motor power	K w	0.85/1.1	1.5/2.2
Coolant motor	w	40	40
G.W/N.W	kg	495/450	595/545
Packing dimension	cm	108x62x215	108x62x220

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
