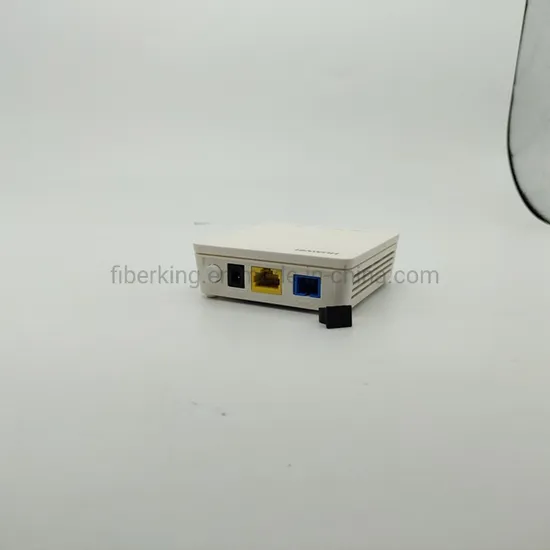

Echolife hg8310m hg8010H mini size 1GE GPON ONU FTTH for MA5680T/MA5683T/MA5608T olt with english firmware mini HG8310 Characteristics: Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS. Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM. High speed forwarding: 900 Mbit/s forwarding in the NAT scenario. IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite. Product Description
| Technical items | Descriptions |
| Fiber port | 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Fiber interface | SC/PC |
| RX sensitivity | <-28dBm (1490nm) |
| WLAN | IEEE802.11b/g/n,300Mbps, a built-in antenna |
| LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
| Throughput | Throughput can reach 900Mbps or more |
| DC power | 12V 1A, external AC-DC power adapter |
| Button | Reset, power |
| Power | 8W |
| Operation | Working temperature: -5-+55 working humidity:10-90%(non-condensation) |
| Storage | Storage temperature: -30-+60 storage humidity: 10-90%(non-condensation) |
| Dimension | 130*105*30mm(length*width*height) |
