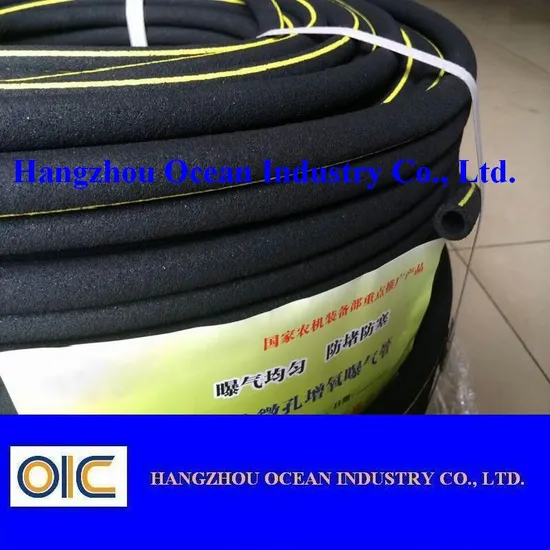

Pool Aeration Tube/Aero Tube/Aeration Pipe

Product Description

1) Pool aeration tube/aero tube/aeration pipe
2) Efficient increasing oxygen
3) Acid and alkali resistance, ageing resistance

aero tube ,aerotube for aeration system
Used to make the dissolved oxygen in the water reach higher amount and enhance the stocking density. Apply to aquaculture, sewage treatment, garden irrigation, greenhouse grow.
Tube
Rubber aeration tube
Cold resistance(-40°C,8h)
Tensile length ≥2.2 Mpa
Tensile elongation ≥130 percent
Hot empty aging (70°C 72h)
Tensile strength rate ≤20 percent
Break elongation rate ≤20 percent
Resist 5% NaOH (23°C 72h)
Tensile strength rate ≤20 percent
Break elongation rate ≤20 percent
Resist 5% HCl (23°C 72h)
Tensile strength rate ≤20 percent
Break elongation rate ≤20 percent
Pressure
s-1 200Kpa
(water seepage amount) 600-800ml/h.m
s-2 200Kpa
(water seepage amount) 10.8l/h.m
200Kpa increase Oxygen amount 420ml/h.m

Model	Outer Diameter(mm)	Wall thickness(mm)	Inside(mm)	Weight(g/m)	Meter/bundle
BA1015	10	1.5	7	45	200
BA1425	14	2.5	9	90	200
BA1630	16	3	10	115	200
BA1835	18	3.5	11	150	200
BA2035	20	3.5	13	160	100
BA2140	21	4	13	200	100
BA2240	22	4	14	205	100
BA2540	25	4	17	240	100
BA2550	25	5	15	295	100
BA2560	25	6	13	310	100
BA2570	25	7	11	335	100
BA2840	28	4	20	290	100
BA2860	28	6	16	340	100

Product performance parameters:

Outer Diameter: 10 to 28 mm
Wall thickness: 2 mm above
The bubble diameter: 20-50 um
Dynamic power: 02 / kw. Hr
The air flow: 3-12 cubic meters/HRM
Applicable water depth: 0-6 meters
Vortex air pump: effective water depth about 1 meter , housed density 1-2 times improve.
Centrifugal pump: effective water depth about 2-3 meters, stocking density improve 3-4 times.
Cottonwood ROM watts fan: effective 3-10 metres above water depth, the effective length can reach 300 m, stocking density can be reached 3-6 times.
Note: no matter you use which kinds of models of air pump, and the pipe section sum is not greater than the total area of main section. If the unclear place, can inquire!

---
