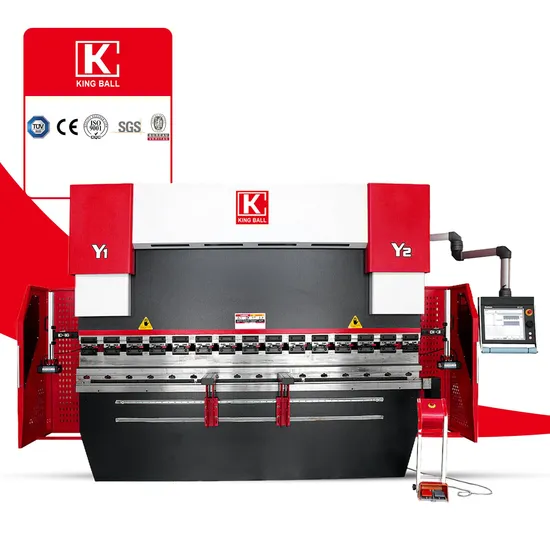

10mm Thickness Delem Hydraulic Press Brake Machine 3200 mm

Product Description

Products Description

Electro-hydraulic CNC Press Brake			KCN-10025	KCN-10032	KCN-10040
Capacity		kN	1000	1000	1000
Max. Bending Length		mm	2500	3200	4000
Between Columns		mm	2100	2600	3100
Max. Shut Height		mm	480	480	480
Slide Stroke		mm	200	200	200
Throat Depth		mm	400	400	400
Down Speed		mm/min	160	160	160
Pressing Speed		mm/min	10	10	10
Return Speed		mm/min	130	130	130
Main Motor Power		kW	7.5	7.5	7.5
X axis stroke		mm	500	500	500
X axis speed		mm/s	300	300	300
R axis stroke		mm	200	200	200
R axis speed		mm/s	60	60	60
Outline Size	L	mm	3000	3700	4500
	W	mm	1750	1750	1750
	H	mm	2450	2450	2450
Weight		kg	7000	7500	8000

Details Images
KCN Series Electro-hydraulic Synchronous CNC Press Brake Main functions and features Overall welded and processed structure. Save electricity, Compared with the traditional transmission device, the electricity consumption is 50%. Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02,high working effective, can improve 30%. The noise is reduced and the machine is quieter. Save oil, Hydraulic fluid use is very small, only for the traditional 50 % Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device. Delem CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance. Ram stroke(Y1, Y2),backgauge (X,R,Z) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision. Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
Main motor Delta servo motor SVP control technology,energy saving rate over 50%, avoid hydraulic oil fast heating
up,reduce hydraulic errors. Laser safety protection DSP Laser safety device protects the press brake operator from the danger of crushing between the moving and fixed part of the
machine.
DSP Laser safety device is mounted on the moving part of the machine, and the protection zone moves with the part. When an
obstacle is detected, such as an operators fingers, detection is immediate and the machine can be stopped. Bending follower Sheet supporting plate can follow the workpiece during the bending. The following degree and speed are controlled by CNC
controller. Bending-help device can move along linear guide left and right
The height can be adjusted up and down manually, also the de-
vice can move front and rear to match the die opening manually.
Two choices for supporting table: Brush and stainless tube. The bending-help device can be controlled to work simultaneously or independently Automatic Lase bending angle measurement system Angle measurement
Spring-back measurement
Very high accuracy Works contactless
Company & Factory Introduction
Our Service Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery overseas
Contact Ways Mrs.Penny Customer Manager E-mail:penny@jinqiu.cc
FAQ
1.Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.

---
