| US$757.14-857.14 | 1 Piece (MOQ) |

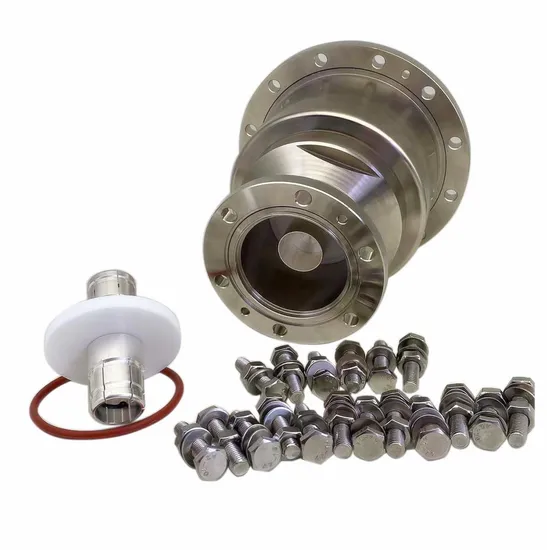

| Model No. | 25/8EIA/49/8EIA-JJB | |
| Interface | 6-1/8″EIA Flange/ 3-1/8″EIA Flange | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-2.5GHz | |
| VSWR | ≤1.07@DC-1000MHz | |
| Dielectric Withstanding Voltage | ≥16000V RMS,50Hz,at sea level | |
| Working Voltage(Max.) | 6000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Average Power | 7.8KW@900MHz | |
| Peak Power Maximum | 90KW | |
| Contact Resistance | Center Contact ≤1.5mΩ | Outer Contact ≤1.5 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥100 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | - |
| Center Conductor | Phosphor Bronze | Ag |
| Coupling flange | Brass | Ni |
| Gasket | Silicone Rubber | - |
| Hardware kits | Stainless Steel | - |
| Environmental | ||
| Operating Temperature | -45ºC-+85 ºC | |
| Weatherproof Rate | IP67 | |
| RoHs Compliant | Yes | |
