Sand Making Machine with River Stone, Granite, Quarts, Marble

Product Description

Product Brief Introduction
VSI series sand making machine is the latest successful new generation sand making machine with the international advanced technology. Technology accumulation of many years and modern processing equipment ensure the leading position of the VSI series sand making machine in this industry. Excellent cost performance and reliability make VSI sand making machine outstanding in the similar products. VSI sand making machine is the perfect combination of the latest research result of Germany and Chinese present working conditions.
Features Large capacity and high output Compared.
With the traditional equipment with the same motor power, it increases 30% output. Low consumption of wearing parts.
Excellent designed impact angle in crushing chamber reduces frication between materials and it, consequently reduces 30% operating cost. Fine shape of final product.
Cubic and good shape, fineness modulus can be adjusted, especially suitable for making artificial sand and stone reshaping. It is proved that the reshaping achievement increases 30%. Hydraulic drive system is convenient to maintain.
Hydraulic cover opening device is more convenient and easier to replace the wearing parts in crushing cavity. Decreases the downtime and saves time and energy. Simple installation and easy operation.
Light in weight and diverse means to install. It is very easy to install, maintain, use and repair, if we have a concrete purpose, just adjust it slightly, we could make full use of it. One machine for multi-purpose, flexible application.
There are wide ranges of crushing chambers and unique crushing structure can make stone hits stone and stone hits iron simultaneously. If we have different purposes,just adjust few parts, we could use it for artificial sand, sand reshaping etc.
Technical Specifications

Model			VSI-7611	VSI-8518	VSI-9526	VSI-1140	VSI-1145
Capacity(t/h)	Center and ring feeding		120-180	200-260	300-380	450-520	500-640
	Center feeding		60-90	100-130	150-190	225-260	250-360
Max .feeding size(mm)	Soft material		<35	<40	<45	<50	<50
	Hard material		<30	<35	<40	<45	<45
Rotation speed(r/min)			1700-1890	1520-1690	1360-1510	1180-1310	1100-1310
Power for double motor(kw)			110-150	180-220	264-320	400-440	400-440
Power source			380V;50Hz
Vibrating sensor			0.1-20mm/s Inspect scope:0.1-20mm/s adjusted continuously
Lubrication hydraulic pressure station		Power for oil pump(kw)	2×0.31
		Safety	To make sure the supply of the oil with double oil pump; Stop working without oil or hydraulic pressure; Temperature falls when the water cools; Start the motor by heating it in winter.
		dimension(mm)	820×520×1270
		Power for oil box heater(kw)	2

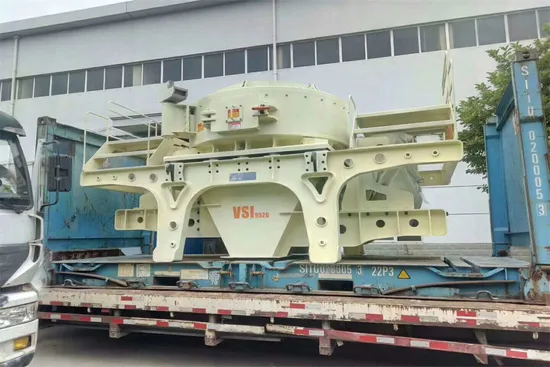

Working Site

---
