High Effeciency 380V/400V/415V/440V AC Automatic Voltage Regulator AVR 10kVA -4000kVA

Product Description

High effeciency 380v/400v/415v/440v ac automatic voltage regulator avr 10kva -4000kva
Advance:
AVR and SBW series AC compensation voltage stabilizer(hereinafter referred to as voltage stabilizer). it is an power supply product which is developed by our company and combines the international advanced technology and our nationl condition.it can keep the output voltage stabilized while the input voltage changes.
This series product has many advantages compared with the other type voltage stabilizer, such as large capacity, more efficient,no wave distortion,steady voltage adjustment,available for different kinds of loads, withstand overload for short time, working for a long time, unattended,freely swith between manual
control and automatic control,freely switch between mains supply and stabilized voltage supply.set up protection devices for over-voltage,under voltage,over current,delay and mechanical breakdown,small size,light weight,install and use conveniently.
Its Features:
1.Industry proven design
2.small size,light weight,easy install
3.Maintenance free
4.Hassle-free performance
5.Widely Input Ranges can be supported to meet Particular needs
6.Reliable, Prompt After-Sales Service(2 years warranty)
7.Energy Efficient Products saving on Power Fees
8.Indoor(IP23) orOutdoor(IP65) can be choose
Application:
1.CNC Machining Centers 2.SMT 3.Printer 4.EDM
5.High way/railway system 6.Medical facilities 7.Laser cutting machine 8.Circuit board drilling machine
9. Automatic insertion machine 10.CNC punch press 11. Net communication basic system
12.Petrochemical/Oil/Power system 13 Broadcast/Television/Bank system 14 Plastic Injection Molding Machines
15 Particularly suitable for large power fluctuations, worst power supply environment because transient mutations voltage, and where voltage regulation is needed.
Technical parameters:

1	Type		AVR
2	Capacity		30kva( from 10kva to 4000kva support)
3	AC Input voltage	Switch	3P60A(CHINT brand switch)
		Phase	Three Phase
		Voltage	304V-456V (or customized)
		Frequency	45HZ-65HZ
4	AC Output voltage	Phase	Three Phase
		Voltage	380V (or customized)
		Frequency	50/60HZ
5	Rated output current		45.5A
6	Voltage Accuracy		±1-5%V Adjustable(Factory set±2%)
7	Load working		Continuous working keep 80% load
8	Efficiency		>98%
9	Response time		<0.1s
	Waveform Distortion		No distortion (the same with input waveform)
10	Insulation strength		2500V/Min
11	Insulation Class		H class(200 degree C)
12	Cooling method		Natural cooling/Fan system cooling
13	Resist electric strengh		2500VAC/min
14	IP		23
15	Noise		≤55db(Noclude forced air cooling system)
16	Temperature Rise		≤75ºC
17	Size:		Length680 *Width 400* High880(mm)
18	Weight :		Net weight:195KG Gross weight: 215KG
19	Warranty:		2 years

20.Protection Function	Over/under voltage protection	When the input voltage exceeds the value of over/under voltage, the stabilizer will protect automatically
	Over current	When the current exceeds the rated value, automatically cut off the input
	Overload and short circuit protection	When the load exceeds the overload value or short circuit of the equipment, it can cut off the power supply within the specified time;
	Position Limitation Protection	When the brush is running over the area, automatically stop adjustment;
	Bypass Protection	When the voltage stabilizer needs maintenance or in failure, the switch can be switched manually in the power supply;
	Effective sampling circuit control	High accuracy, good sensitivity, frequency characteristic measurement, good rate, high input impedance, low output impedance, wide range and low power consumption power supply
	Circuit Function	When the sampling voltage is lower than the lower reference voltage or higher than the upper limit voltage, the brush will automatically return to the center;
	Temperature protection	Three phase Over temperature protection protection
	Warning	Smoke Warning device

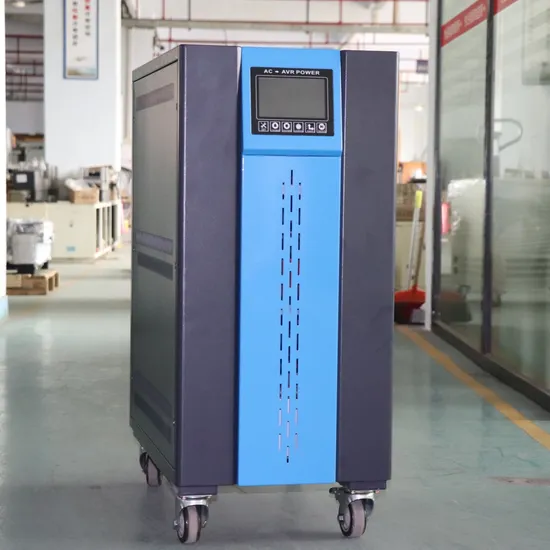

3 phase automatic voltage regulators stabilizers product pictures for you reference:
Some Xingkerong testing machine:
FAQ:
Q 1. what's the payment term?
A. We accept TT, Paypal, or Western union.

Q 2. How is your delivery time ?
A. For bulk order usually it will take about 10-25 days for production.For sample order within7 workdays.

Q 3.What's your packaging material?
A. Using strong wooden case for protection.
Q 4.Do you accept to use our logo ?
A.Our logo is R(please kindly find the previous pic to check).If your order has good quantity,it absolute no problem to do OEM.
But if you use our logo R will be high appreciated.
Q 5.What's your month capacity?
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 5000pcs and big capacity near 1000pcs.

Q 6. What's the materials?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your require. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
For transformer,Aluminum or Copper material is accorsing your demind.

Q 7.Could you offer Form A or other original documents?
A. Yes, we can offer. please tell us all your requires after you pay.

Q 8. what kind of certificate you got?
A. Our company already obtained CE,ISO9001, ROHS, SGS,design and technical patents certificates.

Q9.Where is your market?A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, EasternAsia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q10.Do you accept the Customized?
A: Yes,Welcome customized. sending us your requires,we will draw a drawing for you checking soon.
