CNC Circular Saw Blade Grinding Machine for Sharpening Cermet Tips Saw Blade in One Set-up

Product Description

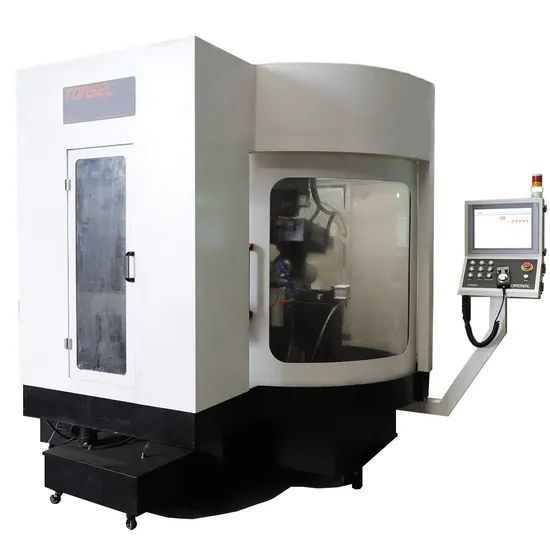

TFN800 Multi-Purpose CNC-Controlled Sharpening Machine
Application: This model is designed for cermet tipsTop/Face/Notch/Chip Break Slot/chamfer angle grinding;meanwhile it can be used to sharpen carbide tips with multi-purpose. High precision & productivity is well used for saw blade manufacturer and resharpening service center to process complete angles in 15s-30s with one set sharpener,the precision is controlled <0.025mm.
High-level productivity & precision grinding machine for carbide tools.
• Saw Dia: <800mm
• Function: Tooth Top/Face/Notch/Chip Break Slot/negtive chamfer angle sharpening
• Precision: <0.02mm
• Efficiency: 4-20s/tip
• Model: TNF 800
• High precision, more function & more productivity, PURCHASE is cost-effective.
• Cooperation Company

Advantages of sawblade grinding machine • More precision- grinding precision: <0.002mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
• More Function- grinding TOP/FACE/NOTCH/GROOVE/negative chamfer angle of sawblade
Presetting for tooth TOP/FACE/NOTCH grinding
CNC Control- High Precision is flexible to control ultra-precision grinding as requirement.

3-D Graphics Grinding Machine
Technical Premeter

Saw Blade Diameter	120~810mm
Hook Angle	25°~-30°
Top Angle	8°~ 30°
Top Chamfer Angle	45°~ -45°
Face Chamfer Angle	30°~ -30°
Bore Diameter	12~120mm
Pitch	2~80mm
Top wheel size	Φ125mm*Φ32mm*16mm
Notch wheel size	Φ125mm*Φ32mm*9mm
Face wheel size	Φ150mm*Φ32mm*14mm
Wheel Speed	2500~3500RPM
Grinding Speed	6-30s/tip
Power	5KW
Dimensions	2500*1800*2200mm
Weight	3680kg

Configuration

Ball Screw	THK (JAPAN)
Crossed Roller Guide	THK (JAPAN)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

Please contact with me for more information:

FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.01mm,the service life is upto 7-15 years. 3. Whats your cooperation companys?
4. How to do if I can not operate?
If you have operation problem when you get the sharpeners, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side. 5. How to get spare part after warranty
One of our sharpeners is working for Korea Resharpening service for 15 years,we still serve with after sale service.
If buyers need spare parts,or there is any problems after waranty, we will always responsible for TORSEL sharpeners, including find problems, send spart parts, and teach you to replace the parts. .
If you need to learn any information

We are online for your service.

---
