Dual-Spectrum PTZ Border/Coastal Surveillance Forest Fire Prevention All-Weather Camera

Product Description

Product Description

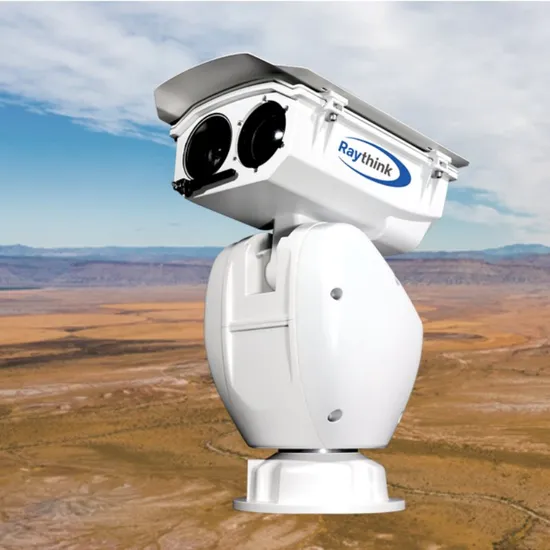

PC4 series is a compact solution that integrates HD visible light, infrared thermal imaging and PTZ system, with intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection inside. It provides all-weather, 24/7 surveillance for scenarios such as perimeter surveillance, forest fire prevention and critical area protection.Product Highlights
• 12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
• Dual-Spectrum ImagingAll-weather, 24/7 security monitoring with dual thermal&visible light imaging
• Long-Range DetectionSupports 75mm and 100mm fixed-focus, as well as 25~75mm continuous zoom infrared lens to meet long-range detection needs.
• Platform IntegrationSupport ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
• Intelligent Fire Detection AlgorithmFeatures an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.
• Intelligent Video AnalysisSupport tripwire/intrusion detection, as well as intelligent detection of fire point.
Specifications

Technical Specifications	PC464A1
Thermal Module
Detector Type	VOx, uncooled FPA detector
Spectral Range	8~14μm
NETD	≤40mK(@25°C,F#1.0,25Hz)
Resolution	640×512
Pixel Pitch	12μm
Focal Length	25~75/75/100mm
Optical Module
Sensor	1/1.8" 4-megapixel CMOS image sensor
Resolution	2688×1520
Focal Length	6~336/6~360mm
PTZ
Pan	360° continuous, 0.1°~100°/s
Tilt	-90°~+90°,0.1°~60°/s
Scan Mode	Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan
Smart Function
Fire Detection	Support
VCA	Support Line Crossing&Intrusion detection
Linkage Action	Video/ Snapshot/Email/Alarm output
System Interface
Power	DC 24V±15%
Network	1×RJ45 10M/100M self-adaptive interface
Audio Input	1×input
Audio Output	1×output
Alarm Input	7×input
Alarm Output	2×output
Storage Interface	Micro SD memory (up to 256G)
RS485 Interface	1×RS485
General
Work Environment	-40ºC~+70ºC;<90%RH
Protection	IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power Consumption	75W
Dimensions (mm)	250*472*360
Weight	14kg

Application Scenarios
Forest Fire Prevention River Monitoring Perimeter Surveillance Critical Infrastructure Protection Company Information
FAQ
Q1: How can we guarantee quality?
A: We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, perfect quality management system, CNAS certification reliability test platform.Q2:How long is your delivery time?A: For smal order,it usually takes 7 working days. For OEM order, please check the shipping time with usQ3: What's the MOQ?A: MOQ is depend on the product.Q4: What's your payment terms?A: Our payment terms is L/C, T/T, D/P, Western Union, Paypal and Money Gram.Q5: What's the product warranty policy?A: Thermal vision products purchased from our company come with a 2-year warranty, while our thermal modules are covered by a 1-year warranty.Q6: How about aftersale support?A: We provide lifetime Technical Support, our engineer will respond your technical support within 24 hours.

---
