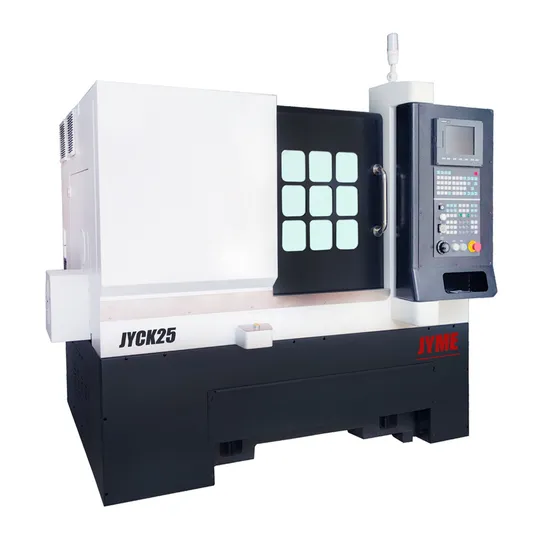

High Precision Jyck25 CNC Inclined Bed Lathe Machine Better Performance Slant Bed Lathe

Product Description

Machine Features:
1. The X-direction slide plate adopts a "slider fixed, guide rail moving" structure. When processing at any tool position, the slider is always centered, making turning smoother, more rigid, and high processing efficiency.
2. The spindle adopts a high-rigidity sleeve spindle with three front and two rear bearings.
3. Fully protective internal defense structure, upgraded protection capability, convenient slag cleaning, effectively extending the service life of the screw guide rail
4. 45 degree conjoined inclined cast iron bed (HT300)
5. JYCK36B is a simple turning and milling tool arrangement machine, which can be equipped with a power head or servo turret according to functional requirements.
6. axis precision indexing/hydraulic disc brake/double magnetic ring encoder
Parameters:

Model	JYCK52	JYCK36/36B
Max. swing dia. over bed	400mm	400mm
Max. swing dia. over table	100mm	100mm
Max. Dia through bar	25mm	36mm
Spindle Speed Range	5000rpm	4000rpm
Motor power (continuous value)	2.2kw	4kw
Spindle nose	A2-4	A2-5
X-axis Travel	620mm	660mm
Z-axis Travel	280mm	280mm
Repeated Positioning accuracy of X/Z axis	±0.002mm	±0.002mm
X/Z axis Min. setting unit	0.001mm	0.001mm
Rapid feed of X/Z axis	30000/30000 mm/min	30000/30000 mm/min
Positioning accuracy of C axis	Easy positioning	Easy positioning/0.01°
X/Z axis motor maximum torque	5.4/5.4N.m	5.4/5.4N.m
X/Z axis screw specifications	25*10/25*10mm	25*10/25*10mm
X/Z axis guide rail	25/25mm ball linear guide	25/25mm ball linear guide
Tool holder type	Gang type /Optional turret/ Optional Power Head	Gang type /Optional turret/ Optional Power Head
Turning Tool Size/Boring Bar Size	20*20mm/dia20mm	20*20mm/dia20mm
Lathe structure	HT300 Overall cast iron bed	HT300 Overall cast iron bed
Dimension	2030x1450x1700mm	2030x1450x1700mm
Weight	1700kg	1900kg

---
