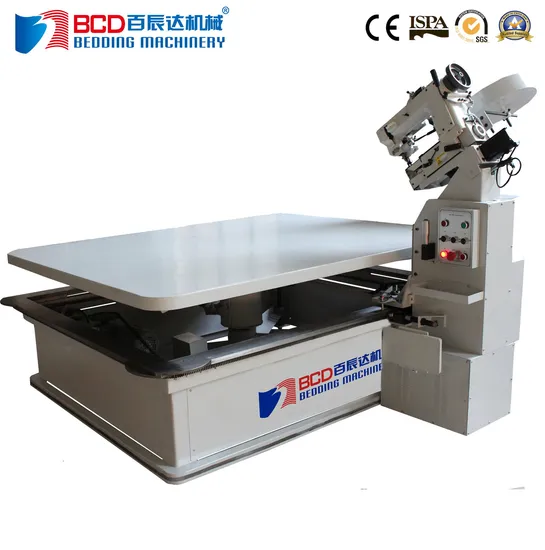

New Fully Automatic Mattress 300u & Gc6-7 Singer Sewing Head Mattress Tape Edge Sewing Machine (BWB-6) with CE/SGS

US$8,000.00-9,500.00 1 SET (MOQ)

Basic Info.

Model NO.
BWB-6
Precision
High Precision
Certification
CE
Warranty
1 Year
Customized
Customized
Condition
New
Total Power
2.05kw
Table Lift
1600*2000mm(Standard)
Max Sewing Head Speed
3000rpm
Factory Preset Speed
2600rpm
Max Stitch Length
4mm
Needle Size
24#/180
Weight of Material
Medium / Heavy
Max Sewing Thickness
11-12mm
Mattress Thickness
50-700mm
Production Speed
15~20 Mattress/Hour
Transport Package
Crate/Plastic Film
Specification
CE\SGS
Trademark
BCD bedding machinery
Origin
Nanjing, China
HS Code
84522190
Production Capacity
30sets/Month

Product Description

Mattress Tape Edge Machine (BWB-6)
Main application and performance
This machine is mainly for high-class thick mattress making, it is especially suitable for pillow top mattress making.
Walking carriage and sewing head are all driven by servo motor, and controlled by PLC program.
This machine has 3 normal sewing speed selection, 3 stitching length, operators may select it freely according to skill.
Frame tracks adpts special arranged high precision processed steels materials, which makes machine running more stable and service lift durable.
Sewing head of this machine can be lift up and down vertically, corner speed auto slow down, all make operation of this machine simple and convenient.
Sewing head type Chain Stitch
Max Sewing speed: 3000r/min
Sewing head work angle 35°~55°(adjustable)
Table lift range: 0-200mm
Sewing head lift type vertically up and down
Sewing head lift control by precision linear potentiometer
Available mattress thickness 50~700mm
Work table size 1600*2000mm,1800*2000mm , 2000*2000mm
Walk carriage control type Electromagnet clutch
Work efficiency 10~20mattress/H(depending on skill)
Walk Carriage speed 7-13.8M/min.
Total motor power 2.05 KW.
