Basic Info.
Model NO.
SIGN-1318/9015/1325
Application
Machinery & Hardware, Art & Craft, Stone Industry
Cutting Ability
High Speed
X,Y Working Area
1300*1800mm
Table Surface
T-Slot Table
Spindle
5.5kw Water Cooling
Guide Rail
25mm Square Guide Rail
Mapping Software
Artcam with Post-Processing
Transport Package
Wooden Case
Product Description
Product Description

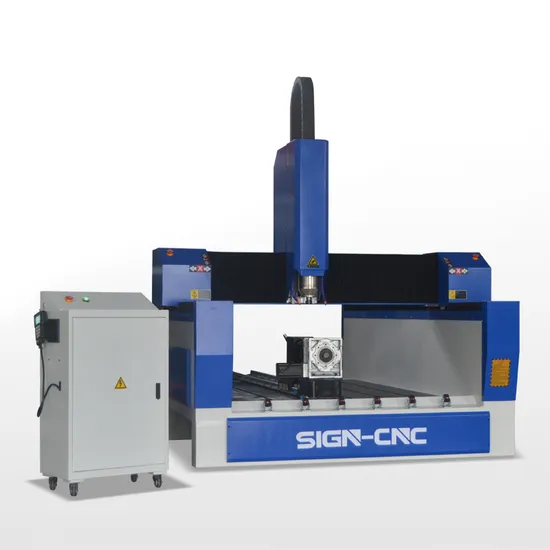

4 Axis Stone CNC Machine SIGN-1318 cnc router with 5.5kw Water Cooling Spindle for Cutting Sone/Marble materials
Detailed Photos
Product Parameters
Model
| SIGN -1318
|
X, Y Working size
| 1300*1800mm
|
Z feed Height
| 300mm
|
Table Surface
| T-slot table
|
X, Y Structure
| Rack and Pinion Driver, 25mm Linear Square Guide Rail
|
Z Structure
| Linear Square Guide Rail and Ball Screw
|
Max. Power Consumption
| (Without spindle) 2.0Kw
|
Max. Rapid Travel Rate
| 33000mm/min
|
Max. Working Speed
| 25000mm/min
|
Spindle Power
| 5.5KW water cooling spindle
|
Spindle Speed
| 0-24000RPM
|
Drive Motors
| Stepper motors
|
Working Voltage:
| AC380V/60Hz
|
Command Language
| G code
|
Control System
| DSP A11
|
X,Y,Z repositioning Accuracy
| ±0.01mm
|
X,Y Resolution
| <0.01mm
|
Software
| Artcam
|
Running Temperature
| 0 degree - 45 degree
|
Relative Humidity
| 30% - 75%
|
Samples
Packaging & Shipping
Company Profile
FAQ
Q1:What about your after-sales service
A1: Two years warranty for machine and 24 hours technical support by call, email, skype, whatsapp, wechat and so on. If you have any question about machine and use, can contact with us, we will give you a solution or send to you video for how to do.
>>
