CD-Dt10 Combined Drawing Unit Production Line

Product Description

Product Description

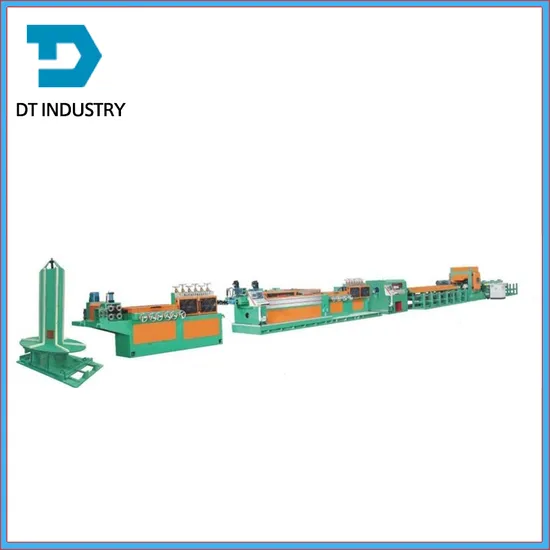

The combined drawing unit is a special equipment that can produce cold-drawn profiles of different shapes and specifications. It is a combined unit that integrates the unwinding, initial straightening, and drawing of blanks and the fine straightening, fixed-length shearing, polishing, and collection of finished products.
CD-DT10 type combined drawing unit is a high-efficiency, professional processing equipment for metal rods, pipes and wires. This unit has the functions of uncoiling, initial straightening, drawing, fine straightening, cutting to length, feeding, polishing, finished product collection, etc. It can process multiple processes in one, and can process a variety of special-shaped materials, such as hexagonal, square, flat square, round and other shapes. The stretching mechanism of this unit can also be divided into double cam or triple cam structures. The triple cam structure is a stretching mechanism with three drawing trolleys that run alternately during stretching.
------Welcome to customize------

Product Parameters

Model No.		CD-DT2	CD-DT4	CD-DT6	CD-DT8	CD-DT10	CD-DT15	CD-DT20
Rated drawing force (KN)		20	40	60	80	100	150	200
Drawing speed m/min (stepless)		5-60	5-60	5-60	5-60	5-60	5-50	5-50
Polishing speed m/min		60	60	60	60	60	50	50
Finished product specification(mm)	Round	3-8	4-12	6-16	8-20	10-25	10-30	15-36
	Square	3-6	4-9	6-12	8-14	10-17	10-21	15-27
	Hexagon	3-7	4-10	6-13	8-16	10-20	10-25	15-31
Product length(m)		2-6±5mm	2-6±5mm	2-6±5mm	2-6±5mm	2-6±5mm	2-6±5mm	2-6±5mm
Surface roughness (round bar)		Ra0.4-Ra1.6	Ra0.4-Ra1.6	Ra0.8-Ra1.6	Ra0.8-Ra1.6	Ra0.8-Ra1.6	Ra0.8-Ra1.6	Ra0.8-Ra1.6
Straightness (mm/m)		0.1-0.5/m	0.1-0.5/m	0.1-0.5/m	0.1-0.5/m	0.1-0.5/m	0.1-0.5/m	0.1-0.5/m
Shaped bar straightness (mm/m)		0.1-0.8/m	0.1-0.8/m	0.1-0.8/m	0.1-0.8/m	0.1-0.8/m	0.1-0.8/m	0.1-0.8/m
Total power (kW)		70kW	120kW	145kW	160kW	200kW	260kW	330kW
Main machine power (kW)		37kW	75kW	75kW	90kW	132kW	160kW	200kW
Total weight (t)		16	25	33	34	60	62	65
Overall dimension (m) (L×W×H)		22×1.6×0.9	23.1×1.6×0.9	28×2×1.2	28×2×1.2	46×3.8×2.2	46×4×2.2	46×4.5×2.2

Main features
Stable structure
High efficiency
Long life
Wide application Detailed Photos
Successful Cases
Our Advantages
Making a perfect proposal for your production line;
Designing the suitable machines based on your requirements;
Manufacture machines you need;
Inspecting, packing, uploading and shipping service;
Offering all related auxiliary machines, spare parts and consumable tools;
Installing and adjusting machines on site and technology training your labors for operation;
Trial production on site till everything is going well;
On-site technology support if customer needs.
24 hours service online before sales and after sales.
