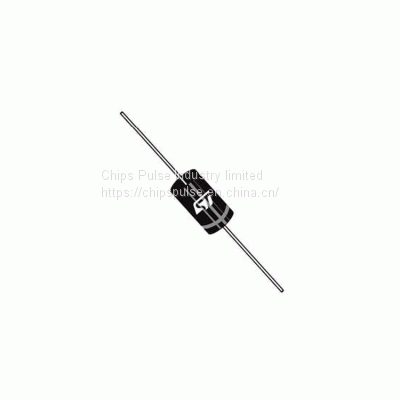

1N5908

Product Details

Product Description

Product Description
Product attribute attribute value search is similar
Manufacturer: STMICROELECTRONICS
Product category: ESD suppressor / TVS Diode
RoHS: Details
Product type: TVs diodes
Polarity: unidirectional
Working voltage: 5 V
Number of channels: 1 channel
Termination type: axial
Package / box: do-201-2
Breakdown voltage: 6 V
Clamping voltage: 8.5 V
Peak pulse power consumption (PPPM): 1.5 kW
Vesd - electrostatic discharge voltage contact: 8 kV
Vesd - electrostatic discharge voltage air gap: 15 kV
CD - diode capacitance: 9500 PF
IPP - peak pulse current: 120 a
Minimum operating temperature: - 65 C
Maximum operating temperature: + 175 C
Series: 1n5908
Packaging: amo pack
Trademark: STMICROELECTRONICS
PD power dissipation: -
six hundred
Subcategory: TVs diodes / ESD suppression diodes
Trade name: TRANSIL
VF - forward voltage: -
Unit weight: 896 mg

---
