New Crawler Excavator with Free Shipping

Product Description

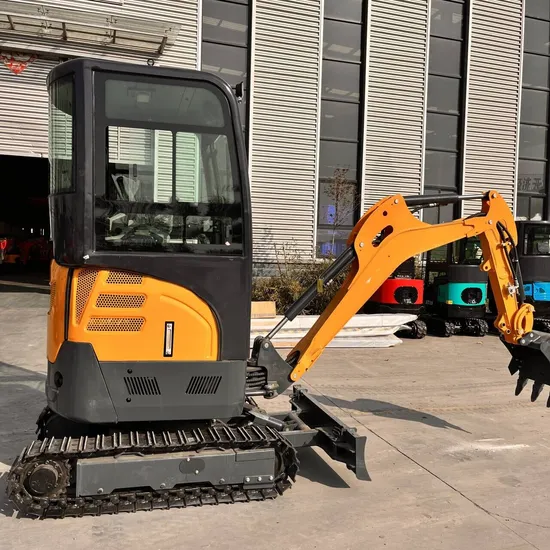

HT 22 mini excavator

This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
The crawler excavator is a compact excavator ,which matched KUBOTA national III engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted international brand main pump and valves and driving motor and slewing motor, hydraulic pilot servo operation system, with steel track, with broken pipeline system , the machine can changed track from steel to rubber. Can telescoping the track frame.
Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
Color can choose Red, Yellow, Blue, accept customized.

Model : HT22
Working weight (KG)	2200KG
Digging bucket capacity	0.056m³
Engine	Kubota D1105
Cylinders	3
Rated power	14.2KW/2200rpm
Fuel Tank	21L
Swing speed	9.5r/min
Walking speed	2.2/4.3km/h
Grade ability	58%
Overall machine size (unit: mm)
Total length/transport length A	4750mm
Total width B	990mm/1300mm
Upper width D	1050mm
Overall height (cab roof) C	2470mm
Standard track shoe width F	230mm
Gauge G	780mm/1090mm
Minimum ground clearance H	150mm
Tail turning radius I	780mm
Track ground length J	1200mm
Track length K	1500mm
Working range (unit: mm)
Maximum excavation height a	3500mm
Maximum unloading height b	2560mm
Maximum Digging depth c	2370mm
Maximum digging distance d	3030mm
Minimum radius of gyration e	1750mm
Maximum height at minimum turning radius f	2600mm

---
