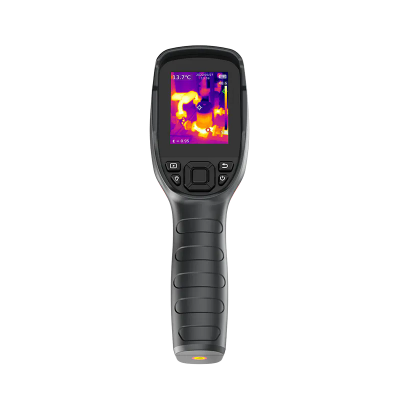

CX200 Pro+ Handheld Thermal Camera

Product Details

Product Description

Product Description
Equipped with a high-sensitivity infrared detector with a resolution of 256×192, based on an intelligent image algorithm, the CX200 Pro+ handheld thermal camera can generate clearer and sharper thermal images.
The product has been completely upgraded to give users a better experience.
Feature
Image+：Distinguish Smaller Temperature Differences And More Details
1. Equipped with a self-developed 12μm 256×192 uncooled infrared detector.
2. NETD as low as 40mK, capturing smaller temperature differences.
3. Intelligent image algorithm applied, displaying clearer details of temperature measurement targets and sharper images.
Feature+: Professional Grade, Full Services Based On Thermal Sensors, Catering To All Industrial Control Scenarios
Shorter startup duration of 6s and smooth operation response.
Support automatic switching of temperature measurement modes for efficient operations.
Support built-in video taking to facilitate analysis and recording.
Performance+: Rugged, Easy To Use, And Quick To Deploy
IP54 waterproof and dustproof, and 2m drop protection
A battery life of 9 hours.
Built-in 32GB memory card, expandable to 128GB
Specification
Thermal ImagingImaging DisplayMeasurement and AnalysisImage StorageSystem FunctionsOthers

Detector TypeUncooled infrared detectorInfrared Resolution256×192Pixel Size12μmSpectral Band7.5-14μmThermal Sensitivity (NETD)＜40mK (25°C,F1.0)Frame Rate25HzLens Focal Length3.2mmFOV56°×42°Spatial Resolution (IFOV)3.75mradFocusing ModeFixed focusMinimum Imaging Distance0.3mMeasurement Range-20°C ~ +150°C, 100°C ~ +400°CMeasurement Accuracy±2°C or ±2% of readings, whichever is greater
Display2.8 inch, 320×240Digital Zoom1× 2× 4×Palettes4 optionsImage ModeInfraredTemperature Width StretchAuto
Analysis Functions on the DeviceCentral temperature point/Highest temperature point/Lowest temperature pointSupporting SoftwarePC (Infrared Analysis Software)
Storage MediumStandard 32GB MicroSD, up to 128G
Alarm TypeHighest/Lowest temperature alarm in full frame; Image pop-ups, flash prompts; Auto image capture at alarm time (with temperature data).Power ManagementAuto shut-down setting
BatteryBuilt-in rechargeable lithium-ion batteryCharging ModeUSB Type-CBattery LifeAbout 9hInterfaceUSB Type-C, SD cardTripod SocketUNC 1/4-20 interface for tripodOperating Temperature-10°C~+50°COperating Humidity10%~95% (non-condensing)Storage Temperature-20°C~+60°CIngress Protection RatingShock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)Weight and DimensionsAbout 520g, 237×75×92mmAuthenticationCE/RoHS/CMA, etc.Packing ListInfrared camera×1, USB cable, 32GB SD card, user manual, storage bag, certificate of qualification, calibration certificate

Flint Technology (Yantai) Co., Ltd，RayThink Technology Co., Ltd. is specialized in innovation and development, manufacturing and marketing of intelligent photoelectric sensing technology. We are deeply engaged in the fields of infrared night vision imaging, thermography, gas imaging and laser sensing, providing professional infrared and laser sensing components, devices, software and smart industry solutions to our global customers. We have also successfully achieved self-development and large-scale production of intelligent multi-dimensional sensing photoelectric products in diverse forms applicable to various fields.
Being a solution provider to public sectors, industries, and commercial markets, we provide a rich portfolio of intelligent photoelectric sensing products, which are widely used in the smart industry, smart robots, gas detection imaging, fire fighting and safety, green energy, carbon neutrality, environmental protection, healthcare, etc. Bearing the mission of boosting intelligent photoelectric sensing technology progress, RayThink Technology integrates photoelectricity and smart technology to continuously create incremental value for customers and contribute to building a safe, energy-saving and environmentally friendly society.
Application Scenarios

Power Maintenance

HVAC Leak Detection

Equipment Inspection

Automotive Maintenance
