Basic Info.
Automatic Grade
Automatic
Application Place
Factory
Applicable Thickness
Thick Material
Needle Number
Twelve Needles
Embroidery Type
Towel Embroidery, Patch Embroidery, Clothing Embroidery, Hat Embroidery, Flat Embroidery
Embroidery Area
500*350mm
Warranty of Core Components
1 Year
Key Selling Points
Automatic
Overall Dimensions
1090X750X1530mm
Type
Flat Embroidery Machine
Product Name
Single Head Cap Embroidery Machine
Application
Cap/Tshirt/Finished Garments/Logos/3D Embroidery
Transport Package
Wooden Package
Production Capacity
10 Set/Sets Per Month
Product Description
Product Description

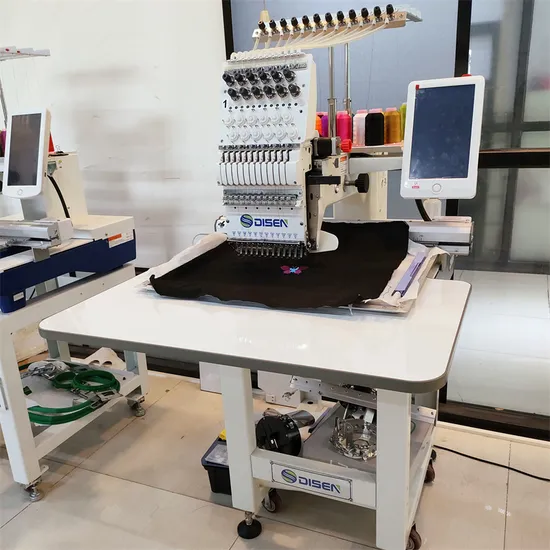

Specification MODEL: 1201 Single Head 12 Needles Embroidery Machine 1.Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc. 2.Embroidery area:500*350mm 3.Controller:10" Touch Screen Dahao A15 System,User-Friendly Interface 4.High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump. 5.Automatic thread trimmer 6.The running speed:100- 1200rpm 7.280 degree Wide cap frame unit 8.Automatic color change and thread break detection 9.Start, Stop and emergency Stop Button 10.Design Tracing Available 11.One-Step Tracing 12.10'' touch screen
display control pannel, showing real time stitching 13.Memory size: 500 Patterns,200 Million stitches 14.Computer Reads Multiple Design Formats.Such As DST.DSB And More. 15.USB port 16.Networkable And Wi-Fi capable 17.Control system can be updated easily
18.Multi-languages:Chinese,English,Spanish,Turkish,Russian,French,Portuguese,Arabic,Thai,Italian,German,Dutch,Polish
19.Electricity:110V/60Hz or 220V/50Hz Selfadaptable worldwide available 20.Equip With Laser Positioning 21.Woodencase Packing.
22.Machine Size:1090x750x1530MM Packing Size:850x835x900mm 23.Net Weight:150KG Gross Weight:180KG
Other related product parameters
| Model | DSC-J1202/J1502 | DSC-J1204/J1504 | DSC-J1206/J1506 |
| Head | 2 | 4 | 6 |
| Needles | 12/15 | 12/15 | 12/15 |
| Working Area | 400*500mm | 400*450mm | 400*450mm |
| Computer | Dahao A15 | Dahao A15 | Topwisdom 512 |
| Speed | 1200 RPM | 1200 RPM | 1200 RPM |
| Size | 1200*1210*1630mm | 1920*1320*1630mm | 2720*1320*1630mm |
| Packing Size | 1480*1030*1050mm | 2180*1110*1000mm | 2910*1160*1510mm |
| Net Weight | 310KG | 450KG | 850KG |
| Gross Weight | 400KG | 590KG | 1070KG |
