Product Description
Product Description

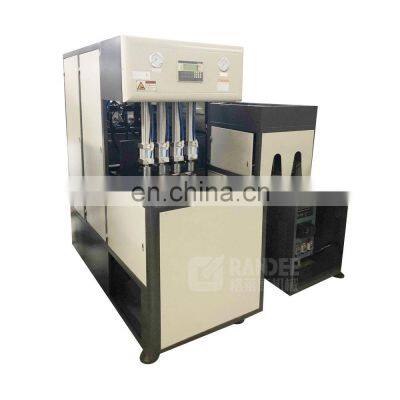

Semi Automatic 4 Cavity Pet Stretch Blow Moulding MachineProduct DescriptionBrief introduction of water bottle blow molding machine:1.Adopt special electronic controlling circuit for heating; high efficiency in simultaneous controlling one lamp or more; lower power consumption.2.Adopt the theory of heat transfer and feedback while designing the shape and thikness of preform.3.The preform will be heated evenly, not be influenced by outside environment.4. Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.5.The air exhaust system designed by CAD can guarantee the deviation of heating furance temperature +/-1 degree.6.Air circuit system consists of movement and blowing so as to meet the needs of different air pressure, also to provide stable high pressure for blowing different shapes of big capacity bottles.7.The system is equipped with silencer, connecting rod and articulated refueling devices.8.Two modes of operation: semi-automatic mode and automatic mode.9.Small size, low investment. one person enough to operate, simple and safe. 4 cavity blow molding machine Heater 4 cavity mold Main technical parameter:ItemUnitGD-B2L-4The numbers of cavitypcs4Minimum bottle sizeL0.25Maximum bottle sizeL1.5Minimum bottle neck sizemm15Maximum bottle neck sizemm80Maximum diameter of bottle bodymm110Maximum height of bottlemm320Mximum thickness of mouldmm110-230Opening strokemm280Theoretical capacitybph1800-2400Operated pressureMpa0.8-1.0Blowing pressureMpa2-3Heater powerkw14Weight of machinekg650Weight of machinekg230Size of main machinemm1850x900x1650mmDetailed ImagesWashing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor.The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling valve: Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.RO SystemBesides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etcBlowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Full automatic sleeve labeling machineCapacity: 100-350bottles/min can be choosedLabel material: PVC PET OPS,etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Label thickness: 0.03~0.13mm Automatic L PE Film Shrink Packing Machine shrink film material: PE Maximum packing size: 420*300*350mmMax. sealing size: 650mmLevel of conveyor: 950±30mmMaximum shrink temperature: 160-260℃Capacity: 8-12packages/min Power: 26KW/16KWWeight: 1500KG Company information Workshop detail Our team Our exhibition Project cases FAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare parts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
