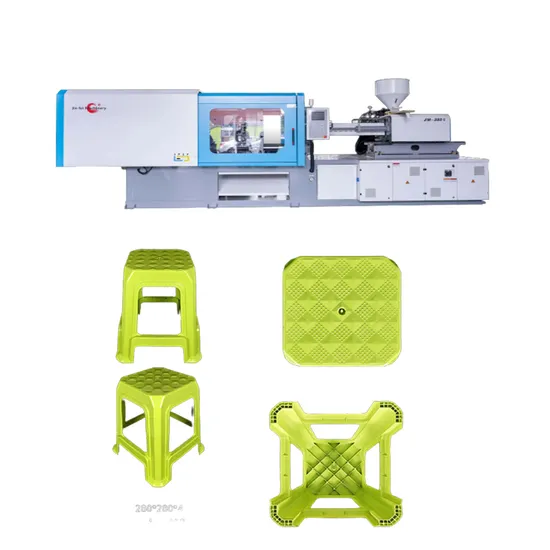

First Class Plastic Toy Making Small Horizontal Injection Molding Machine

Product Description

First Class Plastic Toy Making Small Horizontal Injection Molding Machine
Product Description
INJECTION MOLDING MACHINES
1,Our injection molding machines are designed to provide you with superior performance and good efficiency.
2,Streamline your molding operations with our reliable and durable injection molding machines.

3,Our injection molding machines offer the best in performance and efficiency to fit your needs
Product Parameters

INTERNA TIONAL CLASS	UNIT	JM 230-II
DESCRIPTION		765
INJECTION UNIT		A	B	C
Screw diameter	mm	45	50	55
Screw L/D ratio	L/D	23.3	21	19.1
Theoretical shot volume	cm3	366	451	546
Shot weight(PS)	g	333	410	497
Injection rate	g/s	145	178	216
Injection pressure	bar	2001	1702	1407
Max.screw speed	rpm	185
CLAMPING UNIT
Clamping force	kN	2300
Opening stroke	mm	292
Distance between tie-bars	mm	565*515
Max.mold height	mm	550
Min.mold height	mm	220
Ejector stroke	mm	150
Ejector force	kN	70
OTHERS
Max.Pump pressure	MPa	16
Pump motor power	KW	23
Heating capacity	KW	13.6
Machine dimensions	m	5.65*1.43*1.81
Oiltank cubage	L	300
Machine weight	t	7.2

Detailed Photos
CLAMPING UNIT
* Larger space between tie-bars, suitable for larger molds and multi-cavity necessary.
* Extended and widened guide support, higher repeat accuracy, stable movement, small deformation, greatly improve product quality and mold service life.
* Upgraded parts, Graphite-copper bushes and slider used on tie-bar,ejector and movable platen,ensure fast and precise mold close and open.
* Better designed mechanical structure and toggle system, faster cyde time, and improve production efficiency.
* European type ejector structure, larger space, convenient for maintenance.
* Prepared enough space for upgrade and retrofits.
* Built-in and adjustment free mechanical safety bar, more safe and convenient.
* Much higher rigidity mechanical system than normal Chinese lMM, not only improve machine's using-ife, but also can protect mold.
INJECTION UNIT
* Wide variety injection unit with modular design can be provided depending on the features of molded products.
* Full supported injection unit with dual precise linearguide rails,ensure the best precision and fast sartspeed.
* Dual carriage cylinders improve a better injectionprecision.
* Injection unit steel pipes adopt pipe fitting to connect, no welding design ensure maintenance and after-service to be easier.
* Mobile nozzle shield makes production and maintenance easier.
* Imported high quality SKD61 material screw tip, check ring and thrust ring; a lot kinds of screws design can meet different plastic material and special processing injection molding needs.
* Double layer insulated material barrel, effective heat insulation,prevent scald, safer production process.
* The high torque and high speed hydraulic motor is used in the preplasticated motor with high efficiency and high response.
* Roller slide structure to facilitate customers to change raw materials.
HYDRAULIC UNIT
* Standard equipped with precise and energy saving servomotor system,energy saving capacity can reach to 20%-80% than traditional injection machine.
* World famous brands hydraulic parts ensure machine's reliability and fast response speed.
* Visible and dischargeable oil tank, easy for hydraulic circuit maintenance.
* Adopt modular adaptor valve blocks, hydraulic circuit and functions easy forup-grade and maintenance Effectively reduce pressure loss and improve responsiveness.
* Self-sealed magnetic suction filter, make your maintenance more convenient.
* Logical distribution of pump oil suction port, oil tank oil outlet and hydraulicpipe fits, easy for maintenance.
* Germany DIN standard hydraulic pipe fitting with seal, G screw thread styleplug, avoid oll pollution.
ELECTRIC UNIT
* World well-known brands electric parts.
* The high quality color liquid crystal controller, and the power system manufacturer cooperation research and development, thec ontrol is precise, the response speed is quicker, the powerfuls oftware control function, satisfies more different craft request. Standard equipped LED three-color tower light with alarm, machine working situation is clear.
* Modernized network management function available.
* Water-proof rubber seal used on electric cabinet ensure high safety.
* Machine program according to CE safety standard.
Sample Display
Company Profile
YANSHINE was established in 2009. Our core focus is professional design and manufacture of all kinds of plastic pallets, folding boxes, crate and other plastic logistics products mold.
We insist on the principle of " satisfying customers" demands and realizing the idea with professional solutions". As a result of our ongoing development, YANSHINE has a team of highly skilled designers, engineers, project managers, fabrication technicians and advanced large-scale precision machining equipment that ensures these injection molds manufactured by YANSHINE are produced according to European and North American standards.
We are small enough to give you the attention you need to take your project from the drawing board to the finished product. Yet we are large enough to provide all the services you need from an injection mould.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Domestic Market(30.00%),Africa(20.00%),Mid East(20.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South Asia(5.00%),South America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Injection molding , blow molds, mold parts, injection machine, blow machine.
4. why should you buy from us not from other suppliers?
As a professional manufacturer of plastic injection molding machines in China. We have been in this industry for more than 15 years and have rich experience and technology.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
