Industrial Metal Keyboard with Excellent Tactitle Feel Cherry Keys and Trackball

Product Description

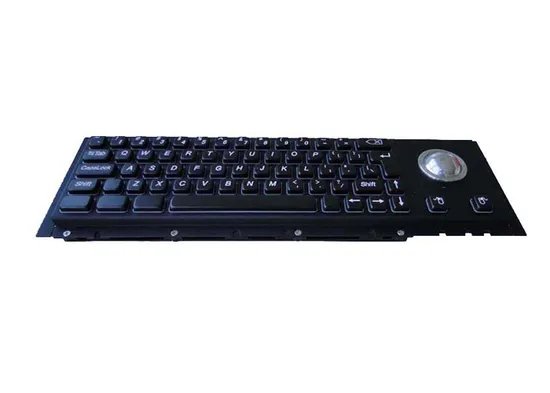

Electroplated Black Kiosk Cherry Key Switch Keyboard with Trackball
Key Features:
1) Electroplated black color, anti-vandalism kiosk keyboard with 63 keys, built-in Cherry GmbH made keyswitches
2) Panel mount(mounting from behind) to the panel of workstation or kiosk
2) Integrated trackball, convenient for browsing website
3) Protruding long travel(4.0mm)keys with etched graphics, super excellent tactile feel
4) Robust construction, built from 304 stainless steel, plus anti-vandalism design for the keys
5) Designed and sealed to make it dust-proof and liquid-proof, meet IP65 rating when properly mounted
6) PS/2 or USB interface, easy and convenient to use
7) Optical trackball or mechanical trackball for option
8) Layout customizable for different language versions as per customer's requirement
Typical Applications:
This metal keyboard is specially designed and built for the application in harsh/industrial environment and public places, for example, factory workstation, oil field, mine, water factory, and self-service kiosks deployed in cinema, theater, shopping mall, campus, post office, hotel, airport etc.
Material:
- Front panel & Key cap: 304 stainless steel
- Back panel: Aluminum alloy
- Key: Protruding long travel key(4.0mm) with etched or laser engraved graphics
- Trackball: Stainless steel(Dia: 38mm)
Electrical Data
- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Trackball resolution: 1000dpi
- Interface: USB or PS2
- EMC compliance: EN55022: 2006+A1: 2007; EN55024: 1998+A2: 2003
- FCC: Part 15, Subpart B
- Safety: EN 60950, CE, UL compliant
Environmental Characteristics
- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6
Mechanical Data
- Actuation force for key: 80± 15g
- Key travel: 4.0mm
- Lifetime (cycles): Min 2, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4
Compatible Operation System
- PS2: Win NT4, 98SE, 98ME, 2000, XP, Win7/Linux
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX/Win7/8/10,Linux
Reliability
- MTBF >50000H
- MTTR <30min
Weight and Dimension
- Weight: 1.80kg
- Dimension:
Face plate: 372.00 X 102.00 mm
Back plate: 394.00 X 123.80 mm
Thickness: 33.80 mm ( to where the tallest part extends).
Company Information:

KINGLEADER is an ISO9001:2008 certified manufacturer,we are engaged in R&D,production,sale and service of rugged keyboard,rugged keypad,rugged trackball,rugged touchpad,touchscreen kiosk and iPad/tablet stand etc.

Moreover, OEM and ODM manufacturing,plastic mold building and plastic injection is a major part of our business.

Why us?

1,ISO9001:2008 certification
2,Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3,Reasonable price and fast response
4,Over 10 years of experience in rugged input device and touchscreen kiosk
5,OEM and ODM capability
6,Flexibility in customization and size of order
7,Trusted suppliers of many world-class famous brands in the industry

---
