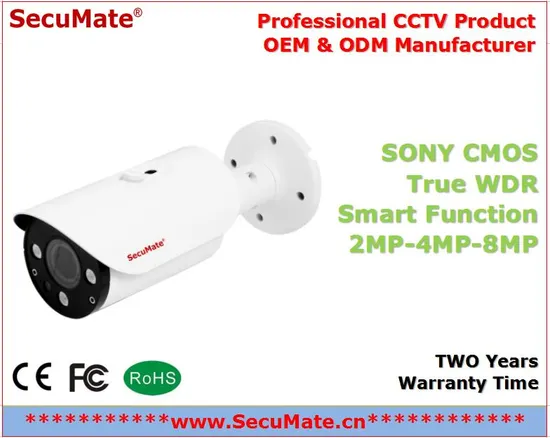

4MP H.265 WDR 50m IR Bullet Camea with Motorised Lens
| Camera | |
| Image Sensor | 1/3" 4MP progressive scan CMOS |
| Min.illumination | 0Lux/F1.4(IR on) |
| IR Distance | 40-50m |
| Electronic Shutter | Auto/ Manual(1/25~1/10000), FLK |
| Day/ Night | ICR switch, Auto, Color, B/W, Ext |
| Lens | 2.8-12mm Motorised lens |
| S/N ratio | ≥50db (AGC OFF) |
| Output | PAL/ NTSC adjustable |
| WDR | WDR(Off/ Low/ Middle/ High) |
| Smart IR Control | Auto/ Manual/Off |
| 3DNR | Off/ Low/ Middle/ High/ Higher |
| Defog | Off/ Low/ Middle/ High |
| Mirror | Off/ Horizontal/ Vertical/ 180º rotation/ Corridor mode(90º rotation,270º rotation) |
| Slow Shutter | OFF/ON |
| Exposure | Auto/ Manual |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Hue |
| Encoding | |
| Video Compression | H.265 /H.264/ MJPEG |
| H.265 Encoding | Main Profile |
| H.264 Encoding | BaseLine / Main Profile / High Profile |
| Encoding features | NTSC: Main stream: 2592*1520 @25fps/2560*1440@25fp, Sub-stream: VGA@30fps
PAL: Main stream: 2592*1520 @25fps/2560*1440@25fps, Sub-stream: VGA@25fps |
| Max. Resolution | 2592X1520 |
| Video Bit rate | Constant bit rate, Variable bit rate (16kbps~8000kbps) |
| Video Type | Complex stream/ Video stream |
| Audio Compression | G.711u |
| Audio Bit rate | 64Kbps |
| Audio Control | Support input/ output Volume gain control |
| ROI | Support 4 zones, multi-stage level |
| NETWORK | |
| Network Protocol | TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP |
| Access Protocol | ONVIF Profile S, Slink |
| Browser | Support IE, Chrome, Firefox, Safari |
| User Permission | User add/ modify/ delete, permission management |
| Safe Mode | Authorized user name and password, HTTPS encryption, AES link encryption, RTSP verification |
| Motion Detection | Set detection zone, Multi-level sensitivity can be set |
| Tampering Alarm | 1 zone |
| Privacy Mask | 4 zones |
| Intelligent Analysis | Target Counting, Area Detection, Left/ Lost, Line Crossing |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending, alarm output linkage, preset linkage |
| Multicast Function | Support |
| ANR | Support, match with NVR |
| Mobile Surveillance | Support Apple, Android APP |
| Exception detection | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, multi-line OSD, OSD color optional |
| DST | Support |
| Snapshot | Support snapshot, snapshot resolution is encoding resolution |
| System Update | Support remote update |
| INTERFACE | |
| Network Interface | RJ45 10M/100M network adaptive |
| Analog video output | 1CH 1.0Vp-p Composite video output |
| Audio | / |
| Alarm Input | / |
| Alarm Output | / |
| Reset | / |
| RS485 | / |
| TF card | Support Max 128G, Micro SD(SDHC /SDXC) card local-storage |
| GENERAL | |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | 0%--90% |
| Protection Grade | IP67 |
| Power Supply | DC12V /PoE optional |
| Power Consumption (max) | <8W |
| Dimensions(mm) | / |
| Weight/PCS(g) | / |
