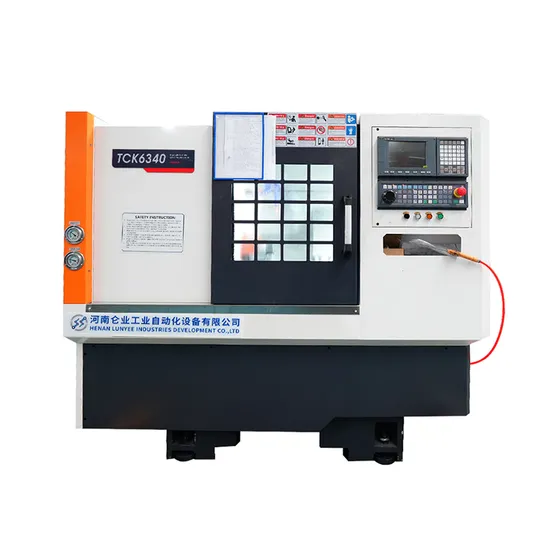

45 Degrees Slant Bed High-Precision Taiwan Guide Rail Tck6340 Mini CNC Lathe Machine

Product Description

45 Degrees Slant Bed High-precision Taiwan Guide Rail TCK6340 Mini CNC Lathe Machine Product Description

Specifications	Unit	TCK6340S
Max.swing dia. over bed	mm	400
Max.swing dia. over slide	mm	140
Max.processing length	mm	180(cutter row)
Max. bar capacity	mm	39/44
Max, processing diameter (plate)	mm	400
Spindle nose	GB59001	A2-5
spindle bore	Ф/mm	49/56
Spindle speed	r/min	50-3500
Spindle shift mode		Stepless Speed
Spindle motor power	KW	5.5
Chuck type		Hydraulic chuck/chuck
Chuck size	Inch	6/8
X axis rapid traverse	m/min	18
Z axis rapid traverse	m/min	18
X axis servo motor torque	N.m	6
Z axis servo motor torque	N.m	6
X axis travel	mm	400
Z axis travel	mm	300
Guide way type		linear
Tool post type		Knife bank (optional tower)
Tool shank size	mm	20x20/Ф25
Total rated power	KW	12
Total rated current	A	21
Net weight	kg	2300
Machine dimension(LxWxH)	(mm)	2200x1530x1780

Detailed Photos
Product Parameters
Company Profile

FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.Q:How can I choose the most suitable machines?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.Q:Do you accept product customization?A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.Q: Is your price competitive?A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.If you have another question, please feel free to contact us.

---
