Product Description
Product Description

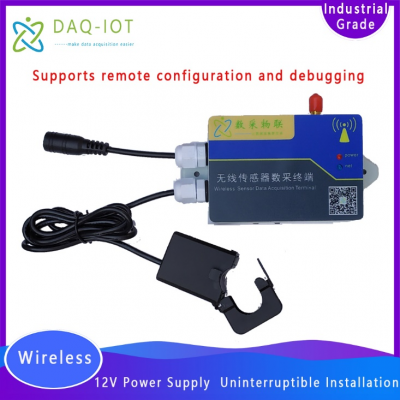

Wireless Current Temperature Acquisition Terminal
1 Product Overview
SC-GP-CT01 wireless current and temperature acquisition sensor terminal is equipped with low power consumption and high sensitivity of the open type transformer, through the principle of electromagnetic induction, the primary side of the large current into the secondary side of the small current, and then used for current monitoring, can be very sensitive to detect the size of the line current, and at the same time to the designated platform server wireless report data regularly.
The sensor terminal supports 4G/NB-IOT/LoRa/WiFi communication mode (the battery power supply adopts NB-IOT/LoRa communication mode by default), which overcomes the wireless communication block caused by the special environment on the site, greatly simplifying the field deployment time and reducing the construction cost. This terminal can support up to 8 current acquisition, with a wide range of open and close transformers, high quality magnetic core materials, open and close structure, easy to install, used for AC motors, lighting equipment, air compressors, heating ventilation and air conditioning devices, building self-control system, industrial urban network, rural power grid renovation projects and other scenes of current monitoring and acquisition.
2 Service ConceptWe solemnly promise that:
What you buy is not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )
This product, the site only ordinary workers connected to electricity installation! No debugging!
We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.
Free Internet of Things solution consulting services!
3 Product Features3.1 Current Acquisition CharacteristicsCollection Type: DC/AC Optional
Current Range: 0 to 1000A Optional
Maximum Input: 100%(continuous)/150%(1 min)
Current Accuracy Level: ±2%
Number of Channels: Supports 1 to 8 current or temperature collection channels
Collection Frequency: 1 second to 24 hours. Remote configuration is supported
3.2 Temperature Acquisition Characteristics (Optional)Acquisition Type: Electrical contact point temperature
Temperature Range：-20℃ to +125℃
Temperature Accuracy Class: ±1%
Collection Frequency: 1 second to 24 hours. Remote configuration is supported
3.3 Electrical CharacterPower Supply Mode: battery power supply or 12V DC / 220V AC
Insulation Impedance: > 100 MΩ (primary / secondary room)
3.4 Communication CharacteristicsWireless Transmission Mode: 4G / NB-IOT / LoRa / WiFi
Communication Protocol: MQTT / TCP / UDP / HTTP / SSL / ModBus RTU, and other protocols can be customized
Data Forwarding: any public network server
Number of Server Centers: up to simultaneous data reporting to 7 cloud servers.
Heartbeat Packet: support custom heartbeat packet, can be set to signal intensity.
Registration Package: support custom registration package, can be set to IMEI code.
Positioning: Support LBS base station positioning to facilitate the query of device location.
3.5 Structural PropertyAntenna Type: sucker or glue stick external antenna (optional built-in antenna)
Material: PC plastic (enclosure)
Main Protection Level: IP65
Main Body Size: 200mm 94mm 60mm
Transformer Probe Structure: open type
Main Mounting Method: wall hanging or screw fastening
Instrument Transformer Probe Mounting Method: suspension mounting
Temperature Probe Installation Mode: bundled installation
3.6 Work EnvironmentAmbient Temperature: -25°C~75°C
Humidity: 0~95% (non-condensing)
4 Product Core Advantagesv Simple installation, fast deployment, help the Internet of things project quickly landing.
v Support non-destructive installation when the power is on, and the user equipment does not need to be powered off during installation.
v Support custom registration package and heartbeat package, facilitate the platform to distinguish devices.
v Support any private Internet of Things cloud platform and configuration software, and provide data protocol docking.
v Support Ali cloud, Baidu Tiangong, OneNet, Tencent Cloud and other mainstream cloud platforms.
v Supports external multiple sensors
v Non-invasive measurement, which does not affect the normal operation of the equipment.
v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance.
Tel: +8619936624847
Email: shengrunan@daq-iot.com
WhatsApp：+8619936624847
10AppendixTransformer appearance dimensions (unit mm)
>>
