3 Axis 4 Axis 5 Axis CNC Machine Tool CNC Milling Machine Vertical Machining Center with Good Quality

Product Description

Product Description

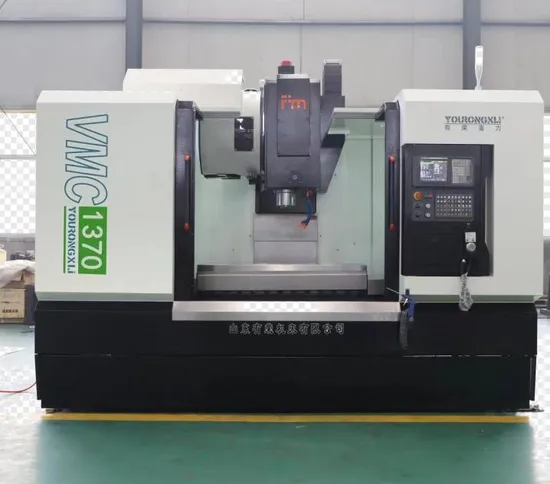

VMC1370 Vertical Milling Machine Center OEM China Xili

VMC1370 vertical CNC machining center is a high-quality, high-precision and high-performance technology intensive product designed and manufactured by our company. This machine tool has novel design and elegant appearance. It has the advantages of stable precision, reliable performance, convenient and flexible operation. The machine tool adopts resin sand casting, and through artificial aging treatment, it has good stability, high strength, stable and reliable precision.

Features:

-resin sand castings, after aging treatment, inside with mesh stiffeners, ensure good stability of structure
-3-axis roller linear guideways, Z-axis designed with six sliding blocks, high speed, high rigidity, low friction, low noise, long service life
-3-axis large pitch ball screws, pre-drawing treatment, good rigidity, good accuracy, high speed
-direct connection structure between servo motors and ball screws, ensures positioning accuracy
-Taiwan brand spindle unit, P4 spindle bearings, high speed, high rigidity, good accuracy - mandatory automatic lubrication system for guideways and ball screws, ensures long service life - full protection guard, disc type tool magazine are standard

Main Parts	Brand	Origin
Ball screw	HIWIN	Taiwan
Linear guideway	HIWIN / PMI	Taiwan
Bearing	NSK	Japan
Spindle	ROYAL	Taiwan
Electrical component	Schnider	French
Central lubrication	HERG	Japan
Tool magazine	Deta / Firdi	Taiwan

Detailed Photos

Product Parameters

Specification	Unit	VMC1580	VMC1370	VMC1275	VMC1160	VMC855	VMC750
Table travel X/Y/Z	mm	1500/800/700	1300/700/700	1200/750/600	1100/600/600	800/550/550	700/500/500
Distance between spindle and table surface	mm	155-855	160-860	130-830	120-720	120-670	120-620
Spindle center to column surface	mm	855	740	830	650	575	560
Rapid feed speed X	m/min	24	24	24	24	36	36
Rapid feed speed Y	m/min	24	24	24	24	36	36
Rapid feed speed Z	m/min	20	18	20	20	32	32
Cutting feed rate	mm/min	1-8000	1-8000	1-8000	1-8000	1-8000	1-12000
Table size	mm	800*1600	700*1500	750*1400	600*1200	550*1000	500*900
Max. table load	kg	1500	1000	1000	800	500	400
T slot	mm	5-18-140	7-18-100	5-18-100	5-18-125	5-18-100	3-18-125
Spindle speed range	r.p.m	6000	8000	8000	8000	8000	8000
Spindle diameter	mm	155/190	150/155	150	150	150	120
Spindle taper		BT50	BT40/BT50	BT40	BT40	BT40	BT40
Main motor power	kw	15	11/15	11	11	7.5	5.5
Magazine capacity	T	24	24	24	24	24	24
Magazine type		Disc type	Disc type	Disc type	Disc type	Disc type	Disc type
Max. tool diameter	mm	105/200	105/200	80/150,80/130	80/150,80/130	80/150,80/130	80/150
Max. tool length	mm	300	300	300	300	300	300
Max. tool weight	kg	15	7	6/7	6/7	6/7	6/7
Positioning accuracy	mm	±0.005	±0.005	±0.005	±0.005	±0.005	±0.005
Repeatability	mm	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
Weight	kg	15000	11500	8500	6600	5400	4200
Overall size	mm	4000*3400*3100	3800*3200*3000	3500*2700*2700	2900*2400*2800	2800*2650*2250	2260*2700*2450

Certifications

We have 68 patents and all of our products have got the CE,TUV,SGS,ISO9001/9002 and other authority approved.
Packaging & Shipping

Delivery time: generally 3 months production time after confirmation of order Packing type: machine need to be dismantled to load into container, covered with damp-proof plastic film, then packed in thickened water-proof cover on steel pallet
Company Profile

Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories. We are manufacturer not trading company.All our products passed CE, ISO9001. We also do OEM for Germany KNUTH, OPTIMUM, Austria Bernardo, America JET and so on. You can trust our quality and service. Hope we can built long-term business relationship with you.
Our Advantages

We will supply enough spare parts and accessories with our Manual Mill Milling Machine when shipment. Within one year after receiving our manual mill milling machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge. FAQ

1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videosOther payment terms are also acceptable after discussion.
3. What is the trade terms ?
Jsually is FOB.
Others like CIF,CFR,EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5.What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turet mil, Swivel head mil, Power sliding ram type, Bed type,Tool milling machine, Gantry type etc.)
6.How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Xili Machine Co.,Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.

---
