China Automatic Wheel Cutting CNC Vertical Lathe Machine

Product Description

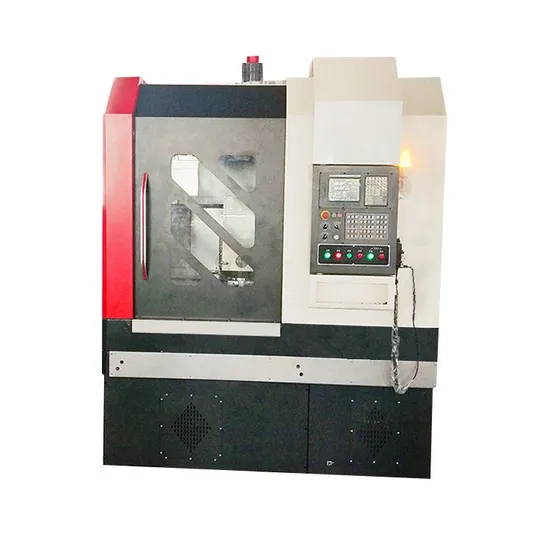

China automatic wheel cutting cnc vertical lathe machine

1.Product Description
In order to meet the needs of the market, we independently developed the vertical lathe machine. Based on years of experience in the manufacture, sales and combined with users' feedback, we have carried out a variety of user-friendly designs.
This machine is an automatic vertical cnc lath for machining the inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. It is especially suitable for brake hubs, drums, clutch pressure plates and flywheels. Processing of parts such as shells.

2.Specification

Specification	Unit	parameter
Maximum rotating diameter of machine tool	mm	700
apindle speed range	rpm	100~1000
cutting feed speed	mm/min	0.1~1000
tool test vertical movement length	mm	700
tool test horizontal movement length	mm	700
rapid traverse speed vertically	mm/min	16000
rapid traverse speed horizontally	mm/min	16000
diameter of hyaraulichuck	mm	400/500
main motor power	kw	18.5/22
positioning accuracy	mm	X,Z/0.015,0.02
repeated positioning accuracy	mm	0.012
machine tool overall dimension	mm	2050x1800x3200

Main Features:
1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.
2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.
3. 8-station hydraulic turret is reliable,high efficient and good performance.
4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque, heavy-duty cutting, and high-speed cutting. At the same time meet the needs of roughing and finishing.
6. Automatic centralized lubrication with full sufficiency and reliability.
7.This machine tool is equipped with drag chain chip conveyor

3.Product details:


The tool holder has a variety of configurations, and users can freely choose according to their actual needs and usage habits.
The main motor of this series of machine tools drives the main shaft to rotate through the imported V belt, so as to ensure the high efficiency, low noise and low vibration of the entire transmission system to meet the cutting requirements of various conditions such as low speed, high torque, high speed and high power of the machine tool.
4.Application
CNC vertical lathes are suitable for internal and external turning, internal and external taper, arc, end face, slotting, threading, drilling, reaming, boring, chamfering of large-diameter shaft parts and disc-shaped parts. The machine has a wide range of uses, high efficiency, good stability, simple operation, and can realize high-precision processing for single or batch processing.
5.Packaging Details


Packaging Details
1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.

6.Our services

Our services are divided into pre-sale, sales, after-sale three parts.


Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use

7.Company information
Zhongyou has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.
8.FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
