2018 newly manufacturer IGBTs applied thermal conductive plastic raw material

Product Details

Product Description

Product Description
2017 newly manufacturer IGBTs applied thermal conductive plastic raw material

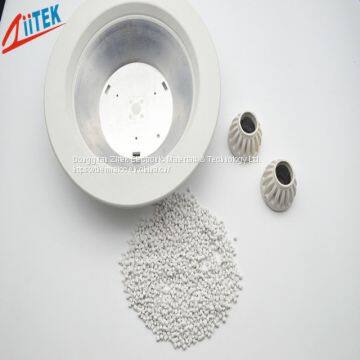

TCP™100-25-06A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.
Application
TCP™100-25-06A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.
To potting LED Lighting heat spreader and power- driver.
Ferrite cements
Relay sealant
Power transformers and coils
tip type LED
PCB and plastics
small electrical devices
IGBTS
Transformer
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power SupplY
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar
Features
Good thermal conductivity: 2.5W/mK
Excellent thermal conductivity compared to normal engineering plastics
Lighter than normal Aluminum housing 30% in weight
Excellent mould ability in injection moulding
Much higher production yield than normal Aluminum Die Casting
Excellent flexibility in designing final products such as housings.
UL94 V-0 .

Typical Properties of TCPTM100-25-06A
Product name	TCPTM100-25-06A
Color	White
Melt index	4 g/10min
Specific Gravity	1.65 g/cm3
Shrinkage	0.1 %
Tensile Strength	50 MPa
Flexural Strength	65 MPa
Flexural Modulus	12000 MPa
Impact Strength, notched	3~4 kJ/m2
Dielectric Breakdown Voltage	> 10000 VAC
Dielectric Constant, 1MHz	4.5
Volume Resistivity	7.0 X 1012 Ohm-meter
Heat Deflection Temperature	150 ℃
Thermal Conductivity In Plane	8W/mK
Thermal Conductivity Throngh Plane	2.5W/mK
Flame retardancy	V-0

---
