Product introduction:

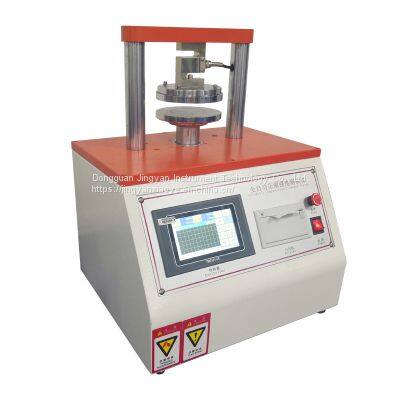

Intelligent paperboard side pressure strength tester, also known as computer test control compression tester, paperboard compression tester, electronic compression tester, side pressure meter, ring pressure meter, is the basic instrument for paperboard/paper compressive strength performance test (Paper packaging testing equipment), equipped with a variety of fixture accessories can test the raw paper of the ring pressure strength, cardboard flat pressure strength, side pressure strength, bonding strength and other tests, so that paper production enterprises to control production costs and improve product quality. Its performance parameters and technical indicators are in compliance with relevant national standards.
Measuring range
| ≤3000N
|
Accuracy
| ±1%
|
Unit switching
| N,kN,kgf,gf,lbf
|
Test speed
| 12.5±2.5mm/min(Or can be set to speed according to customer requirements)
|
Upper and lower platen parallelism
| <0.05mm
|
Platen size
| 100×100mm(Or can be set to speed according to customer requirements)
|
Upper and lower pressure plate spacing
| 80mm(Or can be set to speed according to customer requirements)
|
Volume (approx.)
| 350×400×550mm
|
power supply
| AC220V±10% 2A 50HZ
|
Weight (approx.)
| 65kg
|
>>
