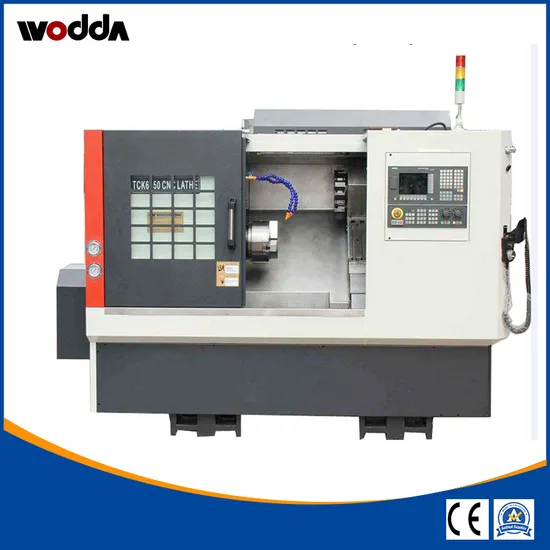

Tck6350 Heavy Duty Slant Bed Bench CNC Lathe Machine

Product Description

TCK6350 Slant Bed CNC Lathe
TCK6350 Slant Bed CNC Lathe Application:
TCK6350 Slant Bed CNC Lathe is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, military and other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level.
TCK6350 Slant Bed CNC Lathe Features: 1.45 degree slant bed cnc lathe
2.High accuracy Taiwan linear guideways
3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back
4.Spindle unit has two types ,the heavy duty cutting type and the high speed type.
5.The first one is suitable for bearing and gear processing .
6.The second type is suitable for high speed and jhigh precision processing.
7.Customers could choose any type of them
8.Screw pre-stretching structure
9.Gang type tool post
10.Optional turret
TCK6350 Slant Bed CNC LatheTechnical Parameter :

Model	TCK6350
Max swing over bed	520mm
Swing over cross slide	220mm
Max processing length	410mm
X/Z axis travel	500/500mm
Spindle unit	200mm
Spindle nose	A2-6/A2-8
Spindle bore	66mm
Bar capacity	55mm
Max spindle speed	3000mm
Chuck size	10''
Spindle motor	7.5/11kw
X/Z axis repeatability	+0.003mm
X/Z axis feed motor torque	7.5/7.5
X/Z rapid traverse	18/18
Cutting tool shape size	25x25
Guide form	45 degree oblique track
Total power capacity	14/18
Machine size	2500x1620x1890mm
Weight	2900kg

TCK6350 Slant Bed CNC Lathe Details:
TCK6350 Slant Bed CNC Lathe Real Picture In Woekshop:
High Precision Metal CNC Turning Center Slant Bed CNC Lathe For Delivery
Any questions of the High Precision Metal CNC Turning Center Slant Bed CNC Lathe. Pls feel free to contact me: mobile +8613346326288

---
