Aerosol Concentration Sampler for Public Environmental Health Air Testing

Product Description

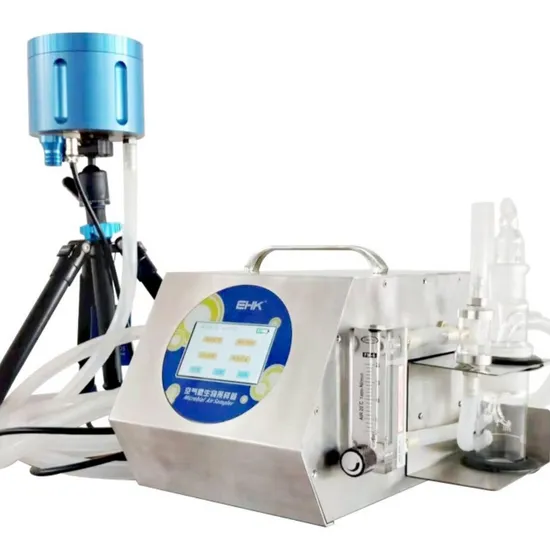

Product Description Aerosol Concentration Sampler
Specifications: ACS-150
Usage: It is used to collect the central air-conditioning air supply system, detect Legionella pneumophila in the air supply system, etc., and detect and study air microbial pollution in public places.

Technical Parameter

total sample volume	0-9999L
total air flow	50-130L/min, ±5%
Concentrated gas flow	5-15L/min, ±5%
Flow repeatability error	±2%
Input air load capacity (connected to separator)	≥2KPa
Concentrated gas path load capacity	≥50KPa
Capture efficiency (biological particles above 3μm)	≥80%
Capture efficiency (biological particles above 0.5μm)	≥90%
Theoretical concentration ratio	1:10
Delay setting range	0-9999 seconds
Automatic sampling time range	0-9999 seconds
Program sampling single time range	0-9999 seconds
Program sampling interval time range	0-9999 seconds
range of sampling times	0-255 times
Sampling Absorbent Volume	20ml
Sampling lift head	1.5 meters (4 meters optional)

Working principle
The air microbial concentration sampler is developed based on the principle of impact sampling method. This product can simply and efficiently solve the problem of low efficiency of traditional air samplers in capturing medium and low concentration microbial aerosols. This sampler is a new type of air microorganism collection device that uses a front-mounted large-flow virtual impact air microbial aerosol concentration device and a standard microbial liquid impact sampler to collect air samples. It has a large flow rate and can concentrate microorganisms in the air into liquid samples in a short time. An air microbial sampling device that avoids the loss of biological activity caused by long-term sampling and improves the work efficiency of sampling personnel.
Our Services 1.R & D team to provide technical support.
2.Provide packaging, labeling OEM customization
3.Provide thrid-party Calibration certificate(paid service).
