Azj200s 12V 200A Used in Engineering Van or Leisure Vehicles Protection Relay & Auto Relay

Product Description

Product Description

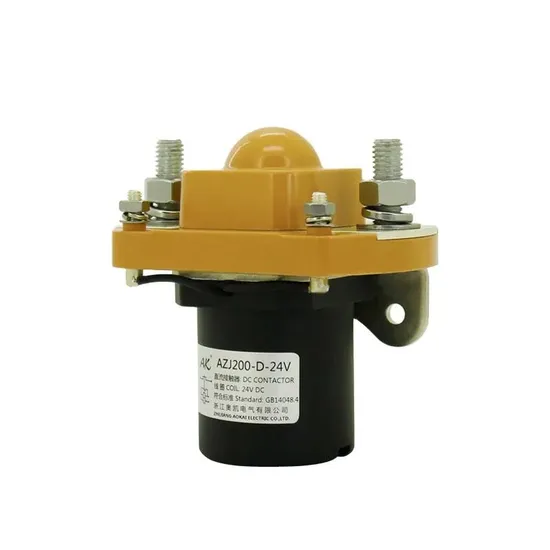

Brand: AK/AOKAI Name: DC Contactor Model: AZJ200 Rated Voltage: DC12 Rated Current: 200A Coil: Single Coil Dimension: 85*56*93(mm) Weight: About 200g

DC CONTACTOR
SPECIFICATIONS

Coil Rated Voltage	DC12V, 24V, 36V, 48V
Main Circuit Rated Current (A)	50A
Main Circuit Contact Voltage Drop Of (load:100A)	≤80mV
Under (20±5), Cooling Pull-in Voltage	≤70%
Under (20±5), Cooling Release Voltage	≥40%, ≤5%
Acceptable Fluctuation Range of Coil Voltage	±20%
Electrify Time	30ms
Disconnecting Release Time	20ms
The Max Disconnecting Time of Contacts	5ms
Insulation Resistance	50MΩ
Dielectric Strength	50Hz/60Hz 1000VAC/1min
Overload Current	≤7Ie, ≤1s
Coil Consumption (W)	≤5.5W
Electrical Life	20000 times
Mechenical Life	1 Million Times
Working Mode	Continuous
Contacts Type	1 NO
Contact Material	AgCdO / AgCuO
Auxiliary Contact Rated Load	2A/48VDC, 5A/24VDC
Technical Standard	GB14048.4-2010

USAGE ENVIRONMENT

Altitude	≤2Km	Amblent temperature	-25~+55
International protection	IP50	Installation type	III
Way to install	Any	Vibration	2.5g(5~50)Hz
Impact	50g,11ms(Half-sine wave)

SCHEMATIC DIAGRAM

INSTALLATION DIAGRAM

Company Information







1. Are you the manufacturer of DC Contactor ?
Yes , we focus on the DC contactor since 2008 , with the Professional technical engineering and marketing teams.

2. How to choose the DC Contactor ?
Please let us know your load current, load voltage, coil voltage (control voltage), contact arrangement, the duty cycle
(working way), we will recommend the suitable product to you.


3. Can you provide samples ? Are the samples free ?
We can supply you the DC Contactor samples , but you should pay for the sample fees and delivery fees.


4. What about your delivery time?
Most of DC Contactors are in stock. We can send in 3 days. Normal order in 10-15 days.Bulk order in 30-45 days .

5. Do you have the guarantee of your DC Contactor?
AOKAI DC Contactor with 1 year guarantee , we will help you slove the Problems during the guarantee time .


6. Can I become an Agent / Dealer of AOKAI DC Contactor ?
Welcome!
We have the DC Contactor Agency terms,we can make the Long-term cooperation under the negotiated terms.
