Multiblade Bridge Type Block Cutting Machinery for Marble, Granite with Maximum Block Size: 2800*3100*1350

Product Description

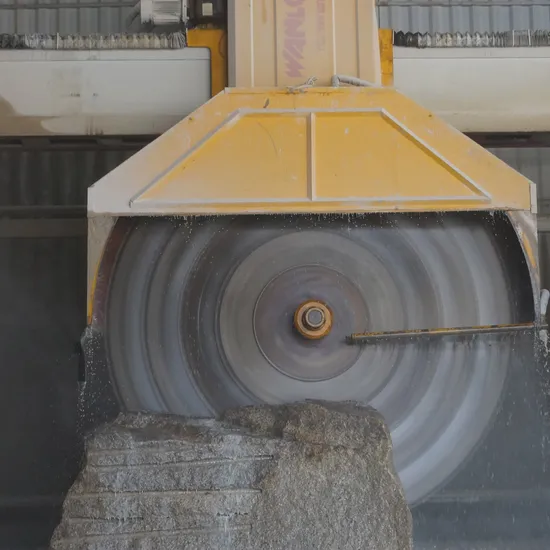

QSQ-2500 Automatic Bridge Multi blade Block Cutting Machine Stone Machinery:QSQ2200 2500 3000 combines different diameters of blades working simultaneously as multiblade cutting. It has screw-rod lifting system and hydraulic lifting system for choice. The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ). Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper,It is also flexible in modification for Single blade cutting. Technical Parameters

Model	Unit	QSQ-2200	QSQ-2500	QSQ-3000
Max. diameter of blades	mm	φ2200	φ2500	φ3000
Max. No. of blades	pcs	9-12	9	5
Recommended Thickness of Blade	mm	5.5/6.5	5.5/6.5	6.5/7.2
Main motor power	KW	45/55	45/55	65
Max. Cutting Size(L x W x H)	mm	3200 x 1800 x 950	3000 x 1800 x 1100	3500 x 1800 x 1350
Overall dimensions(L x W x H)	mm	8000 x 4000 x 5500	8000 x 4000 x 5500	8500 x 4000 x 6100
Approximate weight	Kg	12000	12000	17000

PRODUCT FEATURES:
High efficiency for cutting block into slabs with multi-blade combination, this machine is the ideal equipment for producing large slabs.
1. SIEMENS main motor with stronger seats
2. PANASONIC PLC and inverter
3. Encoder for X, Y, Z movement
4. Strong cast iron HT200
5. Double V-shape guide rails enhance the smooth cutting and movement
6. Touch sensitive Panel Easy for worker to operate
7. Locking system on vertical beam to protect the machine collaption
8. Fast hydraulic lifting system
9. 110sqm per 10 hours for medium hard granite
