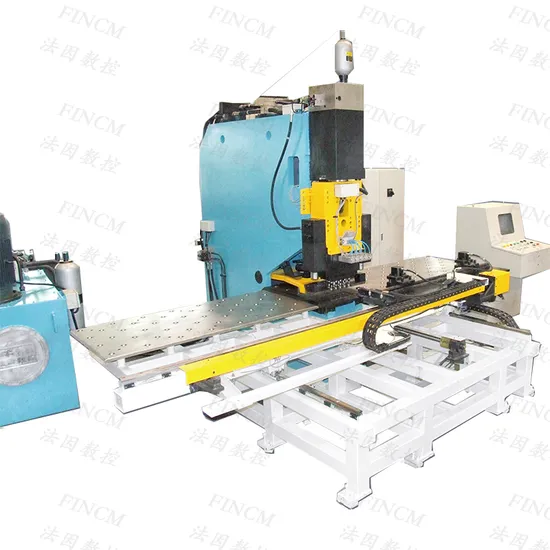

PP1009S FINCM CNC Hydraulic Punching Machine For Lorry beam

Product Description

PP1009S FINCM Truck Frame Side Member Plate Steel CNC Hydraulic Vertital High- Speed Punching Machine 300mm*120mm*4mm-3500mm*800mm*12mm Product Description
The automotive beam CNC punching machine is mainly used for punching small and medium-sized plates in the automotive industry. The workpiece can be punched after one clamping to ensure the position accuracy of the hole. It has high work efficiency and automation, and is especially suitable for Multi-variety processing.
Main Technical Specifications:

Stamping capacity		kN	1000
Maximum workpiece size		mm	800×3500 800×7000(secondary positioning)
Workpiece thickness range		mm	4~12
Pierce Station	Module number		9(top 5, bottom 4)
	Maximum punch diameter	mm	φ50
Punch size (mm)	φ9,φ11,φ13,φ15,φ17,φ21,φ25,φ30,φ35 (including a set of die with plate thickness of 8)
Warpage		mm	<25
Minimum hole margin		mm	≤φ18 20
		mm	>18 70
Number of punches		min
Number of clamps			3
system pressure	high pressure	MPa	24
	low pressure	MPa	6
air pressure		MPa	0.5
Motor power of hydraulic pump		kW	22
X-axis servo motor power		kW	5
Y-axis servo motor power		kW	5
Total capacity		kVA	55

Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:

FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
