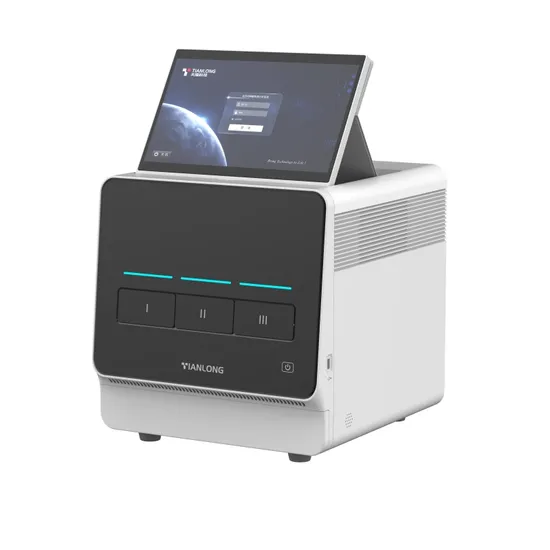

Tianlong GentierX3 Real-time PCR System PCR Thermal Cycler Quantitative Gene Amplification Instrument

Product Description

Product Description
Tianlong GentierX3 Series Real-time PCR System innovates in flexibility and allows users to control three independent blocks in the same PCR system, saving your time and budget. Maximum 3×32-well samples can be run in three different protocols on three independent thermal blocks simultaneously. With the powerful and efficient temperature control system, user-friendly operational designs, Tianlong Gentier X3 Series can provide reliability and efficiency for all your real-time PCR needs.
Advanced flexibility
Improved workflow
3×32 throughput Features Multi-block design to meet different needs
GentierX3 Series has three independently controlled blocks. Maximum 3×32-well samples can be run in three different protocols on three independent thermal blocks simultaneously.
Only 2s for 32 wells fluorescence scanning
With 6/4 fluorescence channels, GentierX3 Series can complete 32 wells of fluorescence scanning in one block within 2s, which improves efficiency for lab professionals.
Efficient temperature control
3 independent thermal blocks with compensation heating function, temperature accuracy, and temperature precision are all ≤ 0.1ºC; hot lid with innovative pressure sensing technology ensures that consumables do not deform and reagents do not evaporate;
Powerful software analysis
GentierX3 Series can offer multiple functions including absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, endpoint fluorescence, etc.
User-friendly design for professionals
Built-in 13.3-inch full-color touch, adjustable for different angles; Standalone configuration and PC control configuration; Power failure protection design can recover the experiment automatically;
Product Parameters

Model	Gentier X3E	Gentier X3S	Gentier X3R	Gentier X3C
Touch Screen	YES	NO	YES	NO
Stand Alone Operation	√	×	√	×
Throughput	32 х 3
Fluorescence Scanning Time	2s for 32 wells fluorescence scanning
Fluorescence Channels	6		4
Dye Compatibility	Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc. Channel 5: Alexa Fluor 680, etc. Channel 6: Tamra, Cy3, NED, etc.		Channel 1: FAM, SYBR Green I, etc. Channel 2: HEX, TET, VIC, JOE, etc. Channel 3: Texas Red, ROX, etc. Channel 4: Cy5, etc.
Heating Rate	Average Heating Rate: ≥ 4.5°C/s ; Max. Heating Rate: ≥6.2°C/s
Cooling Rate	Average Cooling Rate: ≥ 3.5°C/s; Max. Cooling Rate: ≥ 5.0°C/s
Temperature Accuracy	≤0.1ºC
Temperature Uniformity	±0.2ºC
Temperature Precision	≤ 0.1°C
Repeatability	CV ≤ 1%
Linear Correlation	│r│≥ 0.995
Sample Cabin	Three independent sample cabin
Lightsource	High-brightness, long-life, maintenance-free LED light source
Key Applications	Absolute quantification analysis, relative quantification analysis, melting curve, high resolution melting (HRM), genotyping, end point fluorescence, etc.
Special Temperature Protocol	Touchdown step, long step, gradient step, standard step and so on.
Data Storage	1000 results can be stored in machine
Power Failure Protection	Automatically start running experiments after power supply
Communication Specification	Network Port: TCP/IP protocol; Ethernet connection; USB Port: 2.0;
Power Supply and Power Consumption	AC 100~240V;50/60Hz; 1000VA;
Suitable Consumables	Conventional 0.2 mL 8-strip PCR tube (clear, white) Tianlong specialized 0.2 mL 8-strip PCR tube (clear, white)
Dimension	380mm(L) × 410mm (W) × 395mm (H)
Weight	34kg

Application Area
Third-party Testing Laboratory
Research Institute
Hospital
CDC
Customs
Food Factory
Blood Station
Animal CDC
