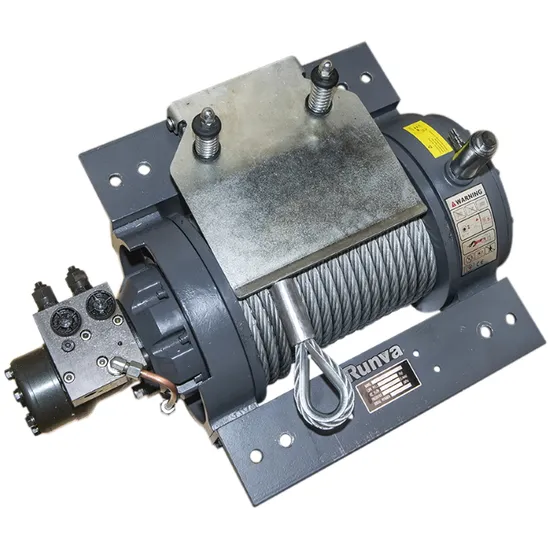

Tow Truck Hydraulic Winch 8t Hwh080 for Road Recovery Wrecker Vehicle

Product Description

Tow Truck Hydraulic Winch 8T HWH080 For Road Recovery Wrecker Vehicle
HWH080(HWH080II)
Rated tension 8000Kgs (8T)
Working speed 4m/min
Rope capacity 32m
Specification of steel wire rope Φ 14*32m
Number of steel wire rope layers three
Rated pressure 15Mpa
Rated flow 50L/min
Motor displacement 65ml/L
Reduction ratio 38:1
Installation hole spacing 300mm * 380mm * 386mm 8-m14 bolt
Overall dimension
(length * width * height) 665mm*486mm*370mm
Net weight 130KgОсновные характеристики гидравлической лебедки Runva HWH080:

Тяговое усилие	17600 lbs / 8000 кг
Рабочий объем мотора	125 мл/об
Давление	15 МПа
Редуктор	двухступенчатый планетарный
Передаточное отношение	38 : 1
Расход масла	15~50 л/мин
Тип, размер троса	сталь, 14 мм x 32 метра
Размер барабана	диаметр 63 мм, ширина 223 мм
Уровень защиты	герметичное исполнение
Посадочный размер	300 x 380 x 386 мм, 8 болтов М14
Габаритные размеры (Д x Ш x В)	665 x 486 x 370 мм
Вес лебедки	130 кг

Brand model Runva Runhua brand 20t winch obstacle removal vehicleRUNVA HWE200 WITH STEEL CABLE Rated Line Pull: 44,000LB (20,000KG)
(HWE200S) HWE200
Rated tension 20000Kgs (20T)
Working speed 6m/min
Rope capacity 50m
Specification of steel wire rope Φ 26*40m
Number of steel wire rope layers 5
Rated pressure 17Mpa
Rated flow 120L/min
Motor displacement 315ml/r
Reduction ratio 36:1
Installation hole spacing 532mm * 160mm * 280mm 8-m20 bolt
Overall dimension
(length * width * height) 1158mm*512mm*420mm
Net weight 380Kg
FOB$4500~$5800USD
RUNVA HWE150 WITH STEEL CABLE
HWE150
Rated tension 15000Kgs (15T)
Working speed 6m/min
Rope capacity 55m
Specification of steel wire rope Φ 22*40m
Number of steel wire rope layers 5
Rated pressure 17Mpa
Rated flow 120L/min
Motor displacement 250ml/r
Reduction ratio 40.6:1
Installation hole spacing 522mm * 180mm * 280mm 8-m20 bolt
Overall dimension
(length * width * height) 1030mm*500mm*415mm
Net weight 300Kg
FOB$3800~$4500USD
10t Winch Obstacle Removal Vehicle Mounted
10t Winch Obstacle Removal Vehicle Mounted
HWE100
Rated tension 9800Kgs (10T)
Working speed 7m/min
Rope capacity 60m
Specification of steel wire rope Φ 18*40m
Number of steel wire rope layers 4
Rated pressure 17Mpa
Rated flow 60L/min
Motor displacement 200ml/r
Reduction ratio 37.8:1
Installation hole spacing 522mm * 180mm * 280mm 8-m20 bolt
Overall dimension
(length * width * height) 665mm*486mm*370mm
Net weight 130Kg
FOB$2500~$3200USD

---
