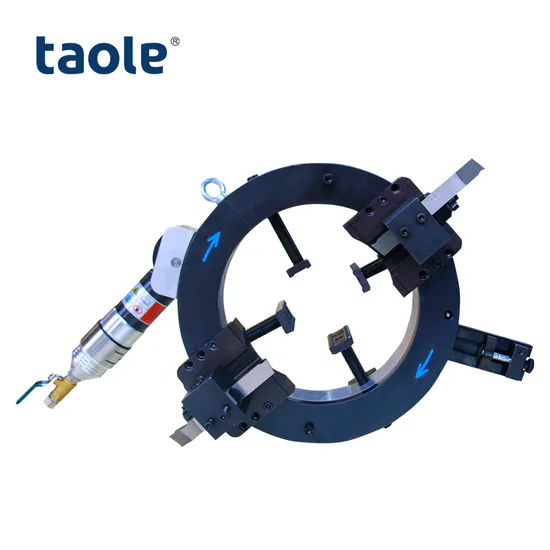

Pneumatic Tube Steel Pipe Cold Cutting and Beveling Machine TOE-377

Product Description

FEATURES AT A GLANCE
TOE/TOP/TOH models of pipe cutting and beveling machine is ideal options for all types of pipe cold cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD (Outer Diamter) of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous process on cold cutting and bevelling, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipes /tubes.

PRODUCT SPECIFICATIONS

Model Type	Spec	Capacity Outer Diameter		Wall thickness/MM		Rotation Speed
		OD MM	OD Inch	Standard	Heavy Duty
1) TOE Driven By Electric 2) TOP Driven By Pneumatic 3) TOH Driven By Hydraulic	89	25-89	1-3	<=30	-	42r/min
	168	50-168	2-6	<=30	-	18r/min
	230	80-230	3-8	<=30	-	15r/min
	275	125-275	5-10	<=30	-	14r/min
	305	150-305	6-10	<=30	<=110	13r/min
	325	168-325	6-12	<=30	<=110	13r/min
	377	219-377	8-14	<=30	<=110	12r/min
	426	273-426	10-16	<=30	<=110	12r/min
	457	300-457	12-18	<=30	<=110	12r/min
	508	355-508	14-20	<=30	<=110	12r/min
	560	400-560	18-22	<=30	<=110	12r/min
	610	457-610	18-24	<=30	<=110	11r/min
	630	480-630	10-24	<=30	<=110	11r/min
	660	508-660	20-26	<=30	<=110	11r/min
	715	560-715	22-28	<=30	<=110	11r/min
	762	600-762	24-30	<=30	<=110	11r/min
	830	660-813	26-32	<=30	<=110	10r/min
	914	762-914	30-36	<=30	<=110	10r/min
	1066	914-1066	36-42	<=30	<=110	10r/min
	1230	1066-1230	42-48	<=30	<=110	10r/min

Certifications

Machine Packing

spc	Capacity Outer Diameter	N.W.(kg)	G.W.(kg)	L.W.H(cm)
89	25-89	28	43	565*520*320
168	50-168	48	72	670*670*320
230	80-230	50	76	720*680*320
275	125-275	56	86	800*685*320
305	150-305	60	92	800*685*320
325	168-325	62	97	800*760*320
377	219-377	68	100	860*830*320
426	273-426	72	108	930*730*340
457	300-457	80	113	930*730*340
508	355-508	92	145	980*800*360
560	400-560	102	152	1010*860*360
610	457-610	115	162	1020*900*360
630	480-630	120	185	1030*920*360
660	508-660	128	190	1050*1030*360
715	560-715	135	200	1010*860*360
762	600-762	150	221	1060*1060*380
830	660-813	172	260	1100*1100*380
914	762-914	210	284	1220*1220*340
1066	914-1066	280	360	1385*1385*380
1230	1066-1230	360	460	1600*1600*380

Successful Project
SIMILAR PRODUCTS

TOE/TOP
-Cold Cutting and Beveling improves safety
-Cutting and Beveling simultaneously
-Split Frame design for easy mounted on pipeline
-Tools feed automatically optional
-Machining heavy-wall pipe from 1'' up to 72''
-Optional tools for suitable for
multi pipe materials with vary wall thickness
TIE/TIP -Work capacity from size ID18-820MM
-Wall thickness <=15mm-75mm
-The groove angle can be arbitrarily selected between 0°-45°
-Explosion Proof
-Stable Performance
-Simple structure makes easy to miantence
-Occasionally overload won't burn
ST-40
-Electrode Grinder using reliable and quality micro motor with R.P.M controlled electronically.-Unique design for with dust collection to reduce human harm.-Easy adjust on bevel angel and tungsten diameter and portable design.-High Precision on surface to improve welding quality.

FAQ
Q: Are you manufacture?
A; Yes. We are China manufacture. Our main products including ergonomic pallet strapping machine system,battery powered strapping tools and carts, pneumatic strapping tools for steel and pet bands.
Q: What is your deliver Time?
A:Standard machine can be ready in 3-7 days. Customized machine will be 25-45 days.
Q: What about payment terms?
A:We will suggest 100% by T/T while amount less than USD 10000 while machine ready in few days. 50% deposit, 50% balance for bigger amount or customizedprojects.
Q: What about your after sales service?
A: It is a simple machine tools on operation and we have English manual with machine.Machine can direct use after your receive it. In furhter any problems. We can provide video and remote service by Email,Phone and supply with necessary spare parts etc. Thank you.

---
