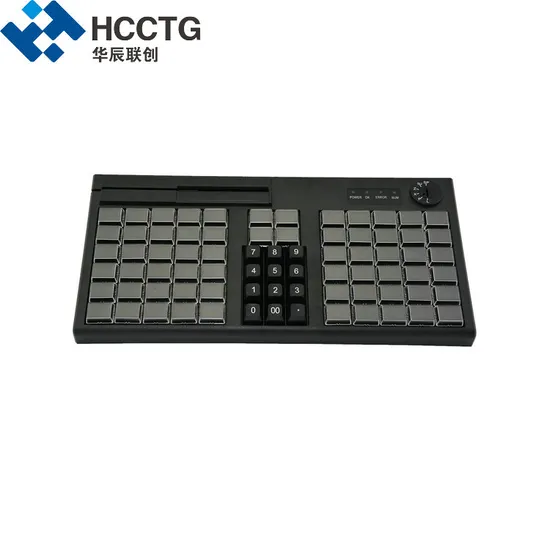

USB PS/2 Interface 76 Keys High Quality Membrane Programmable POS Keyboard (KB76M)

Product Description

USB PS/2 interface 76 Keys High Quality Membrane Programmable POS Keyboard (KB76M)
Specification

Key Number		76 keys
Key Switch Mechanism		Membrane‐type Key Switch with 12 million life cycle time
Total Travel Distance		4 + 0.5mm / 2 + 0.6mm
Key Force (Peak Load		60 + 20cN
Interface / Power		USB: +5VDC + 10% / < 100mA
		PS/2: +5VDC + 10% / < 100mA
Cable		USB cable stored on the back
Programmable Features
Programmable Keys		All keys can be programmable
Multi - Level Programming		support max 6 levels
Time Delay Support		Provide a variable time delay, 0.5 sec per interval
True Keyboard Function		Provide true keyboard wedge function, operated with or without the normal
Software Compatibility		Support USB programming in Window ME/ 9X/2K/ XP/7/8/10
Memory		All programmed data are stored in EEPROM, without battery
Magnetic Stripe Card Reader Specification
Card		Comply with ISO 7812, IBM standards, AAMVA, JIS - 2
Programmable Support		Programmable MSR setting for Header, Tailor, Separator, Suffix and Prefix
ISO Card Track	Track 1	210BPI with max 76 characters
	Track 2	210BPI with max 107 characters or 75BPI with max 37 characters
	Track 3	210BPI with max 107 characters
LEDs Indicator / Buzzer		Power, OK and ERROR / Buzzer
Swipe Speed / Head Life‐Cycle		10 ~ 180 cm/sec. / 500, 000 swipes
Others
Electronics Lock			6 section of electronic locks for different level users
Environment	Operating		0ºC ~ 50ºC (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Physical	Storage		- 20ºC ~ 55ºC (-4°F ~ 131°F) , 10% ~ 90% (no condensation)
	Dim. / Weight		345 (L) x 160 (D) x 40 (H) mm, including MSR/ 1102g (NW)
	Box / Weight		385 (L) x 196 (D) x 57 (H) mm / 1370 g (GW)
Accessories			RJ45 Y Cable with PS/2 & USB interface, Keycap Puller, 1x and 2x Transparent Caps, Electronic keys

Our Advantages
FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution since 2008.
We can provide OEM / ODM customized service according to our customers` various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warrantypolicy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts).
As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.

8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.

9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;

---
