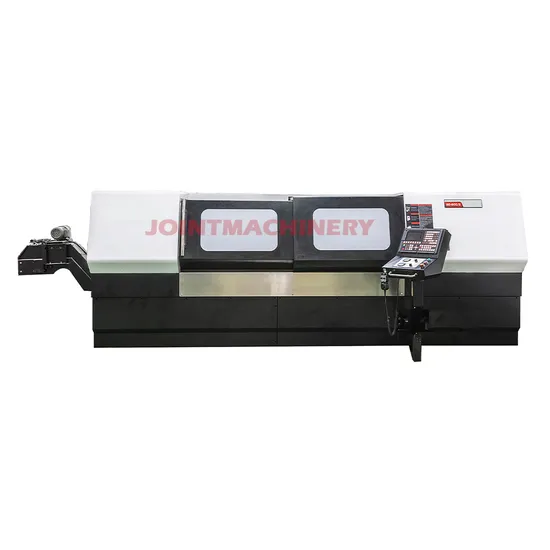

Horizontal Multi-Spindle CNC Deep Hole Drilling for Metal Processing

Product Description

In the realm of machining operations, drilling stands as the cornerstone process with an expansive array of applications. Traditional equipment such as bench drills, milling machines, and radial drills have confined laborers to repetitive tasks under restrictive conditions, affecting both quality and efficiency. The advent of the CNC era has revolutionized this landscape. With the introduction of CNC depth drills, the constraints of manual handling and depth processing bottlenecks are a thing of the past. These advanced machines not only liberate manual labor but also elevate the quality of processing in a single drill operation, achieving precision and excellence surpassing that of conventional drilling methods. Enhanced features like automatic chip removal, CNC positioning, and automated processing ensure an unparalleled machining experience.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

Multi-Spindle Deep Hole Series
The multi-spindle deep hole drill is a specialized machine meticulously crafted to tackle the intricate task of machining the central deep hole in shaft parts. Engineered to offer customers unmatched efficiency, precision, and a superior finish, this tool addresses the demands of deep hole machining with remarkable effectiveness.
1. Purpose-built for machining the center hole of bar stock, this machine excels in deep hole operations specifically targeting the center hole.
2. With dual spindle processing running concurrently, the machine dramatically enhances work efficiency, setting new standards in productivity.
3. The incorporation of taper hole guidance and high-pressure oil cooling systems ensures exceptional precision and an impeccable finish, safeguarding the quality of every operation.
4. Offering flexibility to our clients, the equipment can be outfitted with either Siemens or Taiwan's latest CNC systems, tailored to meet specific customer requirements.
5. For seamless operation, the equipment can be augmented with a manipulator for automatic loading and unloading, reflecting a high degree of automation and efficiency.
Horizontal Multi-Spindle CNC Deep Hole Drilling for Metal Processing

Model	Unit	SD-400
Inner diameter of drilling	mm	2.0-20
Max drilling depth	mm	400
Max diameter of workpiece	mm	60
Max length of workpiece	mm	400
Max rotating speed of principalaxis	rpm	6000
Clamping diameter range	mm	10-100
Spindle feed speed	mm/min	0-150
Spindle travel speed	mm/min	0-5000
Workpiece rotation speed	rpm/min	144
Spindle rotating motor power	kw	5.5/7.5
Workpiece rotating motor power	kw	0.75*2
Total power of machine tool	kw	26
Coolant pressure range	mpa	3-12
Coolant flow range	L/min	0-64
Machine size	mm	4500*2000*2500
Machine weight	kgs	4000

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in the world of manufacturing and exporting CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. We are unwavering in our commitment to deliver machines of unparalleled quality and exceptional service to our global clientele. Our focus is on stringent quality control and continuous improvement to ensure our products consistently surpass industry standards. Integrating cutting-edge technologies from Taiwan and Germany with advanced production equipment, we offer machines renowned for their precision, stability, and reliability, adept at tackling the most complex and demanding machining challenges. Our products, exported globally, enjoy widespread acclaim and recognition. We proudly serve diverse markets across Asia, Europe, South America, North America, and beyond, forging enduring partnerships that generate substantial business value.

---
