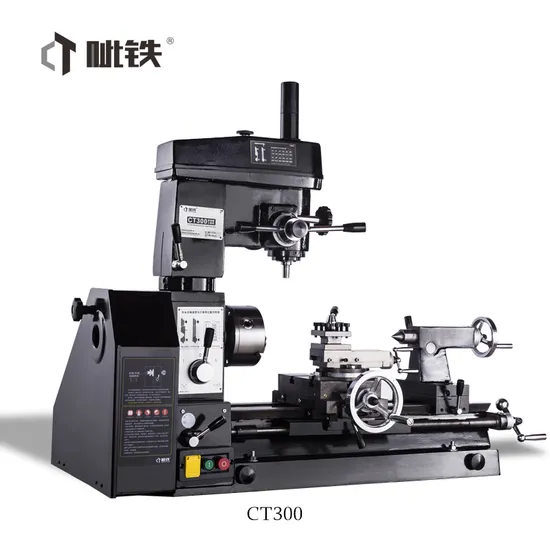

China Benchtop Combination Lathe and Milling CT300 for DIY and Training

US$1,180.00
1-4 Sets
US$1,070.00
5+ Sets

Basic Info.

Model NO.
CT300
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Swing Over Bed
300mm
Spindle Taper
Mt4
Spindle Bore
26mm
Taper Tailstock
Mt3
Motor Power
750W
Machine Weight
200kgs
Packing Size
1130X570X910mm
Transport Package
Standard Wooden Packing
Specification
900*580*1160mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
1660

Product Description

Turning-parameters
Max. swing over bed 300mm
Max. swing over tool post 140mm
Max.machining length 500mm
Spindle taper MT4
Spindle bore 26mm
Max. travel of tail-stock sleeve 50mm
Taper of tail-stock MT3
Middle carriage travel 200mm
Small carriage travel 80mm
Threads metric pitches 0.5~3mm/14kinds
Threads inch pitches 11~40TPI/20kinds
Transverse feed 0.05~0.5mm
Longitudinal feed 0.05~0.5mm/2steps
Spindle speed range 160~1600 r/min 6 steps
Motor power 750w,50Hz
Drilling and milling-parameters
Max.Drilling capacity 20mm
Table size 200x150mm
T-slots size 12mm
Z spindle travel 80mm
Spindle taper MT3
Spindle travel 80mm
Distance from spindle to column guide rail 175mm
Distance from spindle end to table surface 240~320mm
Spindle speeds 125~1600r/min 12 steps
Rotation angle of drilling and milling box head around the column 360°
Net weight/Gross weight 200/210kg
Overall dimensions 1160x580x900mm
Package Size 1130x570x910mm
