China Woodworking Machinery Relief Wood Carving CNC Router Machine with Multi Heads

Product Description

Product Description

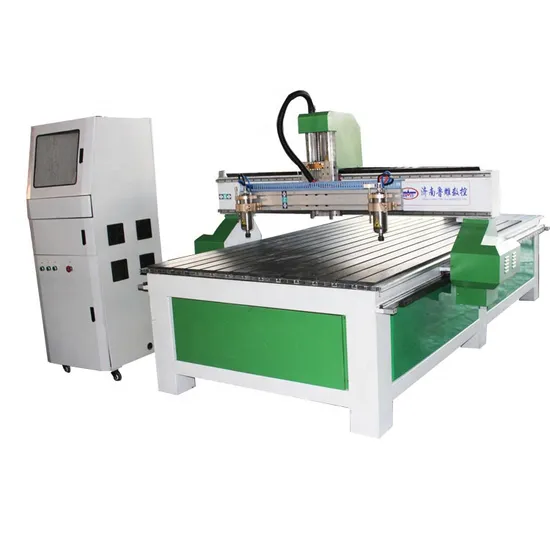

Relief CNC Engraving Machine
Brief introduction
1.The lathe bed is cast iron wholly. High-rigidity ,firmness, without deformation.
2.Three axes adopt the imported ball screw rod with high precision and linear guide rail which ensures the precision of machine.
3.High subdivision step motor with high speed, low noise, running firmly, and powerful torque cutting.
4.Adopts water cooled spindle with frequency conversion. With low noise, the service life is long, and rotated steadily.
5..High-power, deeply incise. It can incise 30mm thickness acrylic once.
6.The software of the machine can be upgraded so as to ensure the machine improved constantly.
7.Opening software interface can connect all kinds of 3D engraving software, compatible with high precision software.
8.Inserting DSP control system can be optional to this machine.
Relief CNC Engraving Machine technical parameters

Model NO.	LD-1325-3-4 -5-6Multi-Spindle CNC Router
X Y Z Traveling Area	1300*2500*200mm(optional)
Table Structure	Aluminum profile
X Y Transmission	XY is with helical helical Rack Gear
Z Transmission	Germany brand ball screws
X Y Z Guide Rail	TAIWAN HIWIN 20mmSquare Rail
Spindle Power	2.2KW Water Cooling/24000rpm/min
Spindle quantity	3/4/5/6 heads(optional)
Max. Spindle Power	24000 r/min
Max. Traveling Speed	20 m/s
Max. Working Area	12 m/min
Processing Accuracy	±0.025mm
Reposition Accuracy	≤0.025mm
Driving System	Stepper motor and leadshine driver
Command Language	HPGL, G Code
Software	Castmate Artcam Typs 3 March 3 Wentai
Operation System	NC studio control system
Working Voltage	AC380V, 50HZ
Packing	Wooden case
Net Weight/Gross Weight	1300KGS /1500KGS
Package Dimension	3.2*1.85*2.15m
Payment	TT with 30% in advance

Relief CNC Engraving Machine technical application
1.Can make cutting, carving processing to wood, plastic and marble etc. Also used in manufacture industry for copper, iron and aluminum work piece processing.
2.Artwork industry: Carving various characters and figures on gifts, furniture, wood articles, artworks and souvenirs. Matrix processing industry: Applied in carving of elaborate characters and patterns, processing of small matrix products.
3.Building model industry: Carving some elaborate small windows, fences, wall decoration patterns etc.
4.Seal industry: Carving various seals with cattle horn, plastic, wood and ink storage
Relief CNC Engraving Machine details
CNC wood carving router samples
Our Services
1. Delivery and Lead time
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation.
A series pictures and videos will provided as machine finished for help customer understand the performance of the machine.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided
24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone
Technical support by email, whatsapp, wechat,imo and skype available on time. 4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
The video for operation will provide.
Training at our workshop or on site is available.After sale-service 5.We accept the ODM,OEM
If you have other needs, please let me know
