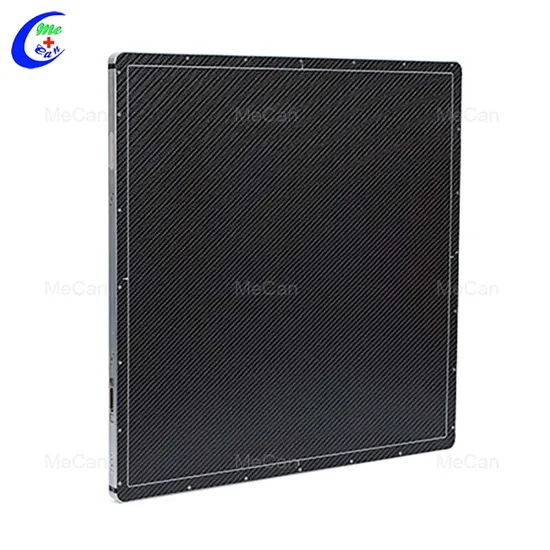

Wireless Dr Panel Digital X-ray Detector X Ray Flat Panel Detector Medical 14X17

Product Description

Product Description Flat-panel detectors are a class of solid-state x-ray digital radiography devices similar in principle to the image sensors used in digital photography and video. They are used in both projectional radiography and as an alternative to x-ray image intensifiers (IIs) in fluoroscopy equipment.

Product Parameters Flat Panel Detector for Human

Parameter	MX-FPD3543H	MX-FPD3543WL	MX-FPD4343H	MX-FPD4343WL
Type	a-Si+ Csl
Image size	35*43cm	35*43cm	43*43cm	43*43cm
	14*17 inch	14*17 inch	17*17 inch	17*17 inch
Pixel pitch(µm)	140
Pixels Matrix	2560*3072	2560*3072	3072*3072	3072*3072
A/D(bit)	16bit
spatial resolution	3.6 LP/mm	3.6 LP/mm	3.6 LP/mm	3.6 LP/mm
Weight	3.0kg	3.0kg	3.7kg	4.5kg
Dimensions (cm)	38.3*46*1.5	38.3*46*1.5	46*46*1.5	46*46*1.5
Water tightness	IP54	IP54	IP54	IP54
Battery stand by	No	7H	No	7H
wireless	No	yes	No	yes

Flat Panel Detector for Animal

Parameter	MX-FPD3543V	MX-FPD3543WLV	MX-FPD4343V	MX-FPD4343WLV
Type	a-Si+ Csl
Image size	35*43cm	35*43cm	43*43cm	43*43cm
	14*17 inch	14*17 inch	17*17 inch	17*17 inch
Pixel pitch(µm)	140
Pixels Matrix	2560*3072	2560*3072	3072*3072	3072*3072
A/D(bit)	16bit
spatial resolution	3.6 LP/mm	3.6 LP/mm	3.6 LP/mm	3.6 LP/mm
Weight	3.0kg	3.0kg	3.7kg	4.5kg
Dimensions (cm)	38.3*46*1.5	38.3*46*1.5	46*46*1.5	46*46*1.5
Water tightness	IP54	IP54	IP54	IP54
Battery stand by	No	7H	No	7H
Wireless	No	Yes	No	Yes

Test images of x ray panel detector
