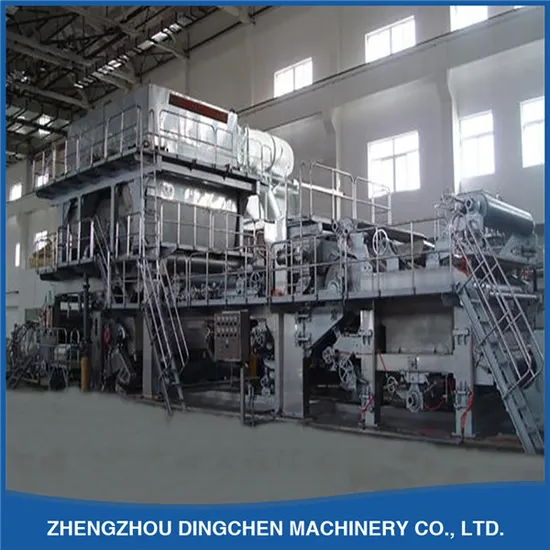

5ton Per Day Tissue Paper Machine (1880mm)

Product Description

1880mm 5TPD recycled raw material for tissue paper making machine
1880mm high efficiency tissue paper machine
Technical parameters
1, raw material: Waste paper and pure wood pulp;
2. Output paper: High and middle grade tissue paper
3. Output weight: 13-36G/M²
4. Net paper width: 1880mm
5. Wire width: 2150mm
6. Capacity: 5T/D
7. Working speed: 150m/min
8. Rail gauge: 2900mm
9. Drive: AC converter frequency conversion, adjustable speed, drive step by step
10. Standard of design: National standards for the export of equipment.
Main structure of equipment:
1. Cylinder part:
Cylinder section: 1500mm × 2150× 2700mmmm stainless steel cylinder 3 sets, Φ 450mm × 2150× 2700mmcouch roll 3sets, reverse roll 1set, rubber hardness HSD 38± 2
2. Dryer part:
2500mm× 2150mm× 2700mm alloy dryer can (1PC); Φ 2500mm× 2150mm× 2700mm Coach roll (1 PC); Pneumatic pressure device, rubber hardness HSD 93±
3. Equipped With duplex air bells cap.
4. Reeling part: One roll cylinder (1000mm× 2850mm), reel paper on sweat cylinder
5. Rewinding and cutting:
800mm× 2100mm× 2700mm cooling cylinder (1PS), 240mm× 2100mm× 2700mmrubber Rider rubber roll (1PC), rubber hardness: HSD 35± 2. Winding on the sweat cylinder.
5. Transmission & Control Division: AC frequency converter and adjustable speed, Processing transmission

NO.	Equipment	Qty(set)
1	1880mm single cylinder single wire & single felt high speed tissue paper machine	1
2	Double-dryer exhaust hood	1
3	800axial-flow fan	1
4	Mould former	1
5	15 type roots pump	1
6	Suction box	2
7	5m3 High consistence hydrabrusher	1
8	380 double disc refiner	2
9	0.6pressure screen	1
10	606 desander 12pcs	4 group
11	700thruster	4
12	8inch pulp pump	2
13	6inch pulp pump	6
14	6inch white water pump	2
15	Two-phase flow pump-150	4
16	workbench	1
17	Frequency control cabinet	1
18	Air pump cabinet	1

Tissue paper production flowchart
Workshop overview
Packing and shipping

---
