Product Description
Product Description

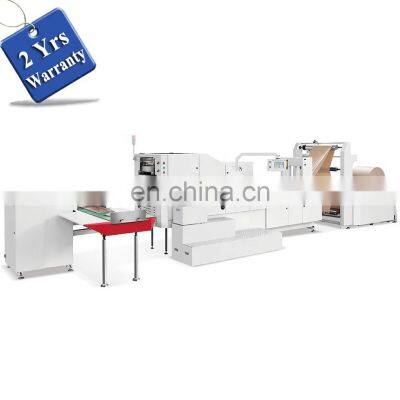

HD330 high speed roll feed Automatic Square Bottom bakery Food Kraft Paper Bag Making Machine for Supermarket GroceryVideos Video demonstration only for referenceVideo: https://youtu.be/Fi23rKyXBsgProduct Description Description: Roll Feeding square bottom paper bag making machine forming the paper bag in one process from printed or unprinted roll paper , side gluing, roll folding, roll paper cutting, bottom folding, bottom gluing, bottom forming, bag formation at a stroke. This machine controls by PC programmable servo motor through the human-machine touch screen interface. It can produce various of specifications paper bags. This machine have advantages of high speed, quickly replace the paper bag specifications, more wide range adjusting etc. It is an ideal machine for producing food bag, shopping handles bag. Features: 1. The human-machine touch screen interface, the work condition can be shown in real-time.2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.3. Pneumatic paper reel lifting device make paper reel changing easy.4. Automatic constant tension control system. The tension will be just right from beginning to end.5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.6. Rotary serrated cutter (or flat-blade cutter) with elliptical gears is used for cutting, Thumb buttons, pressed bottom cutting device, bag type have many choices.7. Don't stop machine side clamp, CAM synchronous adjustment of structure, the adjustment will become more intuitive, more simple, more time saving.8. Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.9. Accurate colors tracking system, replace the paper roll, downtime, blackouts, without human intervention, the machine will automatically positioning operation, color errors automatically shut down.10. Automatic lubricating oil supply system. Parameters:ModelHD190HD330Cutting Length (C) 190-370MM270-530MMBag Length (L)L=C-(H÷2+15~25)L=C-(H÷2+15~25)Bag Width (W)80-200MM130-320MMBottom Size (H)50-105MM60-180MMMax Speed30-260pcs/min30-220pcs/minMax Reel Weight400Kg600KgMax Roll Diameter1100mm1100mmPaper Roll Width280-630mm400-970mmPaper Specification45-140GSM60-170GSMAir Pressure≥0.12M3, 0.4~1Mpa≥0.12cmm, 0.4~1MpaDriven MotorDouble Servo MotorDouble Servo MotorElectricity380V, 50HZ, 3PHASE380V, 50HZ, 3PHASEPower14Kw17KwWeight6000Kg8600KgDimension8500*3200*1700mm10000*3700*1900mmDetailed ImagesMan-machine Interface Touch Screen Automatic Counting System Automatic Glue Supply System At The Bottom Color Mark Tracking SystemPaper Tube Forming SystemCompact Transmission Structure Design Service Team Pre-sale Service After-sale Service A: Inquiry and consulting support A: English manuel and video instruction B: Sample testing support. B: Your technians can get trained in my factoryC: Invoice and Contract confirmation. C: Engineers available for overseas if necessary Certifications FAQ1.Q: What information should i let you know if i want to get a quotation?A: What is your Max and Min product size in mm?B: What is your paper thickness in GSM?C: Some photos of your finished products2.Q: Are you a manufacturer?A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter. 3.Q: What about the payment term?A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..4.Q: What is the warranty?A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)5.Q: What is your aftersale service?A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..6.Q:What is the delivery time?A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.Packaging & ShippingWooden Case Loading and Transport Contact UsYOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE. Mobile/Whatsapp/Wechat: +86-18258286679 Email: utecs@ , utecsinter@ , danielsuer@ Skype: danielsuerWeb:
>>
